Documentation for Geography Markup Language
Definition Type: Element
Name: _Solid
Namespace: http://www.opengis.net/gml
Type: gml:AbstractSolidType
Containing Schema: geometryPrimitives.xsd
Abstract True
Documentation:
The "_Solid" element is the abstract head of the substituition group for all (continuous) solid elements.

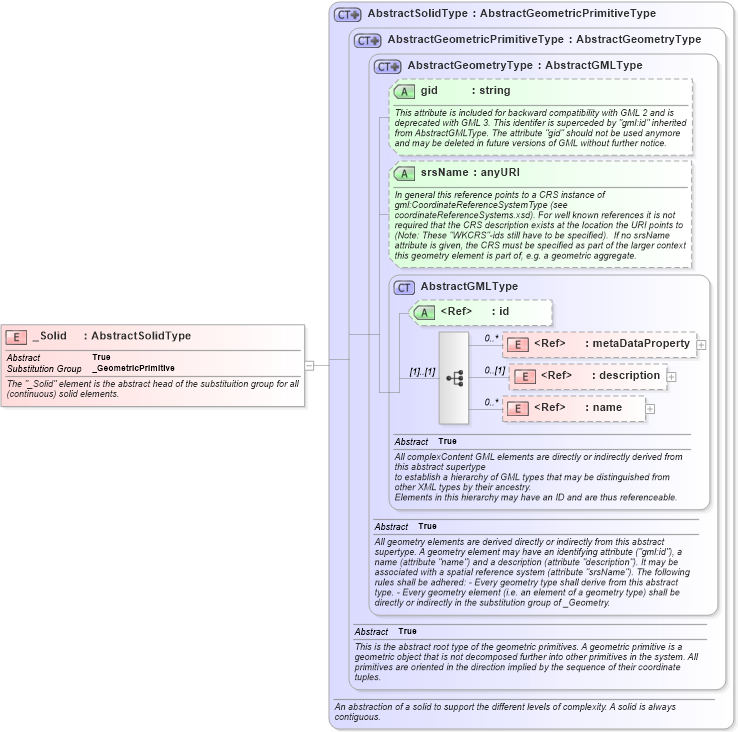

Collapse XSD Schema Diagram:
Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into gid in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometricPrimitiveType in schema geometrybasic0d1d_xsd Drilldown into AbstractSolidType in schema geometryprimitives_xsdXSD Diagram of _Solid in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="_Solid" type="gml:AbstractSolidType" abstract="true" substitutionGroup="gml:_GeometricPrimitive">
    <annotation>
        <documentation>The "_Solid" element is the abstract head of the substituition group for all (continuous) solid elements.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
gid gml:gid Optional
srsName gml:srsName Optional
Collapse Derivation Tree:
Collapse References:
gml:_GeometricPrimitive
