Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractTimeSliceType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractGMLType
Containing Schema: dynamicFeature.xsd
Abstract True
Documentation:
A timeslice encapsulates the time-varying properties of a dynamic feature--it must be extended to represent a timestamped projection of a feature. The dataSource property describes how the temporal data was acquired.

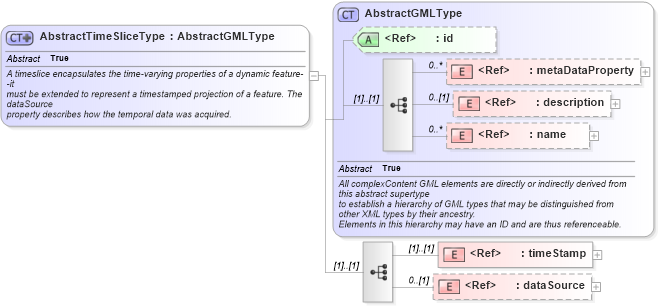

Collapse XSD Schema Diagram:
Drilldown into dataSource in schema dynamicfeature_xsd Drilldown into timeStamp in schema temporal_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsdXSD Diagram of AbstractTimeSliceType in schema dynamicfeature_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractTimeSliceType" abstract="true">
    <annotation>
        <documentation xml:lang="en">
        A timeslice encapsulates the time-varying properties of a dynamic feature--it
        must be extended to represent a timestamped projection of a feature. The dataSource
        property describes how the temporal data was acquired.
      </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractGMLType">
            <sequence>
                <element ref="gml:timeStamp" />
                <element ref="gml:dataSource" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
timeStamp gml:timeStamp (1) (1)
dataSource gml:dataSource 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:_TimeSlicegml:MovingObjectStatusType,
