Documentation for Geography Markup Language
Definition Type: ComplexType
Name: animateMotionPrototype
Namespace: http://www.w3.org/2001/SMIL20/
Containing Schema: smil20.xsd
Abstract

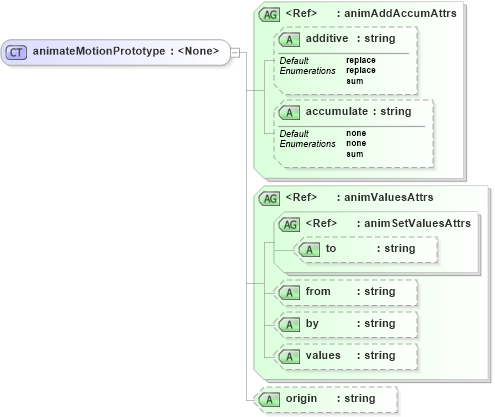

Collapse XSD Schema Diagram:
Drilldown into origin in schema smil20_xsd Drilldown into values in schema smil20_xsd Drilldown into by in schema smil20_xsd Drilldown into from in schema smil20_xsd Drilldown into to in schema smil20_xsd Drilldown into animSetValuesAttrs in schema smil20_xsd Drilldown into animValuesAttrs in schema smil20_xsd Drilldown into accumulate in schema smil20_xsd Drilldown into additive in schema smil20_xsd Drilldown into animAddAccumAttrs in schema smil20_xsdXSD Diagram of animateMotionPrototype in schema smil20_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="animateMotionPrototype">
    <attributeGroup ref="smil20:animAddAccumAttrs" />
    <attributeGroup ref="smil20:animValuesAttrs" />
    <attribute name="origin" type="string" use="optional" />
</complexType>
Collapse Child Attributes:
Name Type Default Value Use
additive smil20:additive replace Optional
accumulate smil20:accumulate none Optional
to smil20:to Optional
from smil20:from Optional
by smil20:by Optional
values smil20:values Optional
origin smil20:origin Optional
Collapse Derivation Tree:
Collapse References:
smil20lang:animateMotionType
