Documentation for Geography Markup Language
Definition Type: AttributeGroup
Name: AssociationAttributeGroup
Namespace: http://www.opengis.net/gml
Containing Schema: gmlBase.xsd
Documentation:
Attribute group used to enable property elements to refer to their value remotely. It contains the “simple link” components from xlinks.xsd, with all members “optional”, and the remoteSchema attribute, which is also optional. These attributes can be attached to any element, thus allowing it to act as a pointer. The 'remoteSchema' attribute allows an element that carries link attributes to indicate that the element is declared in a remote schema rather than by the schema that constrains the current document instance.

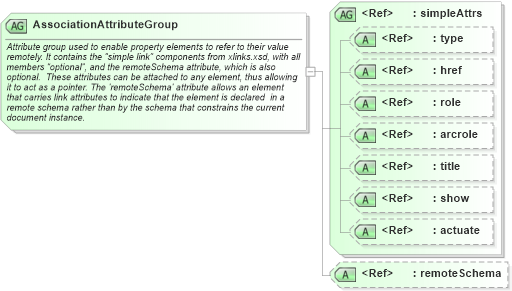

Collapse XSD Schema Diagram:
Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsdXSD Diagram of AssociationAttributeGroup in schema gmlbase_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<attributeGroup name="AssociationAttributeGroup">
    <annotation>
        <documentation>Attribute group used to enable property elements to refer to their value remotely. It contains the “simple link” components from xlinks.xsd, with all members “optional”, and the remoteSchema attribute, which is also optional.  These attributes can be attached to any element, thus allowing it to act as a pointer. The 'remoteSchema' attribute allows an element  that carries link attributes to indicate that the element is declared  in a remote schema rather than by the schema that constrains the current document instance. </documentation>
    </annotation>
    <attributeGroup ref="xlink:simpleAttrs" />
    <attribute ref="gml:remoteSchema" use="optional" />
</attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
