Documentation for Geography Markup Language
Definition Type: AttributeGroup
Name: BasicTimingAttrs
Namespace: http://www.w3.org/2001/SMIL20/Language
Containing Schema: smil20-language.xsd

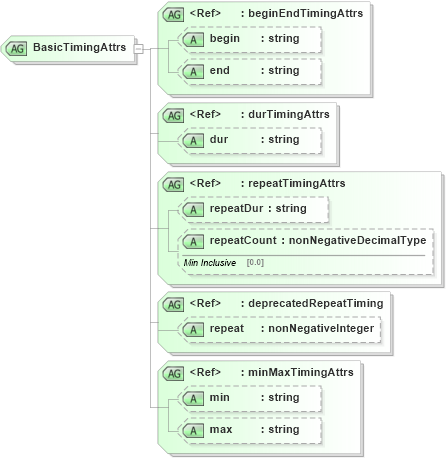

Collapse XSD Schema Diagram:
Drilldown into max in schema smil20_xsd Drilldown into min in schema smil20_xsd Drilldown into minMaxTimingAttrs in schema smil20_xsd Drilldown into repeat in schema smil20_xsd Drilldown into deprecatedRepeatTiming in schema smil20_xsd Drilldown into repeatCount in schema smil20_xsd Drilldown into repeatDur in schema smil20_xsd Drilldown into repeatTimingAttrs in schema smil20_xsd Drilldown into dur in schema smil20_xsd Drilldown into durTimingAttrs in schema smil20_xsd Drilldown into end in schema smil20_xsd Drilldown into begin in schema smil20_xsd Drilldown into beginEndTimingAttrs in schema smil20_xsdXSD Diagram of BasicTimingAttrs in schema smil20-language_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<attributeGroup name="BasicTimingAttrs">
    <attributeGroup ref="smil20:beginEndTimingAttrs" />
    <attributeGroup ref="smil20:durTimingAttrs" />
    <attributeGroup ref="smil20:repeatTimingAttrs" />
    <attributeGroup ref="smil20:deprecatedRepeatTiming" />
    <attributeGroup ref="smil20:minMaxTimingAttrs" />
</attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
begin smil20:begin (Optional)
end smil20:end (Optional)
dur smil20:dur (Optional)
repeatDur smil20:repeatDur (Optional)
repeatCount smil20:repeatCount (Optional)
repeat smil20:repeat (Optional)
min smil20:min (Optional)
max smil20:max (Optional)
