Documentation for Geography Markup Language
Definition Type: ComplexType
Name: CompositeCurveType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCurveType
Containing Schema: geometryComplexes.xsd
Abstract
Documentation:
A CompositeCurve is defined by a sequence of (orientable) curves such that the each curve in the sequence terminates at the start point of the subsequent curve in the list.

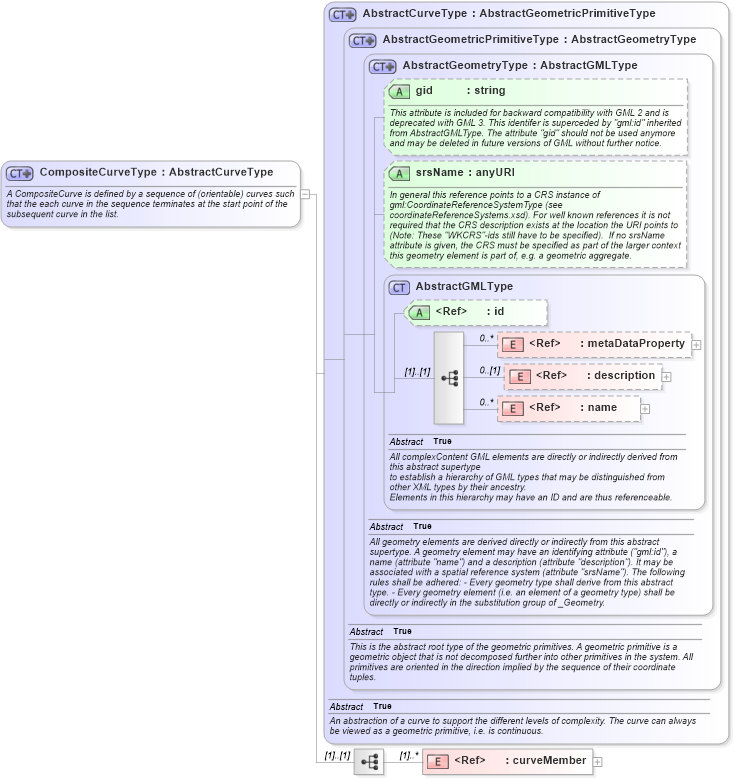

Collapse XSD Schema Diagram:
Drilldown into curveMember in schema geometryprimitives_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into gid in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometricPrimitiveType in schema geometrybasic0d1d_xsd Drilldown into AbstractCurveType in schema geometrybasic0d1d_xsdXSD Diagram of CompositeCurveType in schema geometrycomplexes_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="CompositeCurveType">
    <annotation>
        <documentation>
				A CompositeCurve is defined by a sequence of (orientable) curves such that the each curve in the sequence terminates at the start point of the subsequent curve in the list.
			</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCurveType">
            <sequence>
                <element ref="gml:curveMember" maxOccurs="unbounded">
                    <annotation>
                        <documentation>This element references or contains one curve in the composite curve. The curves are contiguous, the collection of curves is ordered.
NOTE: This definition allows for a nested structure, i.e. a CompositeCurve may use, for example, another CompositeCurve as a curve member.</documentation>
                    </annotation>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
curveMember gml:curveMember (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
gid gml:gid Optional
srsName gml:srsName Optional
Collapse Derivation Tree:
Collapse References:
gml:CompositeCurve
