Documentation for Geography Markup Language
Definition Type: ComplexType
Name: CompositeSurfaceType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractSurfaceType
Containing Schema: geometryComplexes.xsd
Abstract
Documentation:
A CompositeSurface is defined by a set of orientable surfaces. A composite surface is geometry type with all the geometric properties of a (primitive) surface. Essentially, a composite surface is a collection of surfaces that join in pairs on common boundary curves and which, when considered as a whole, form a single surface.

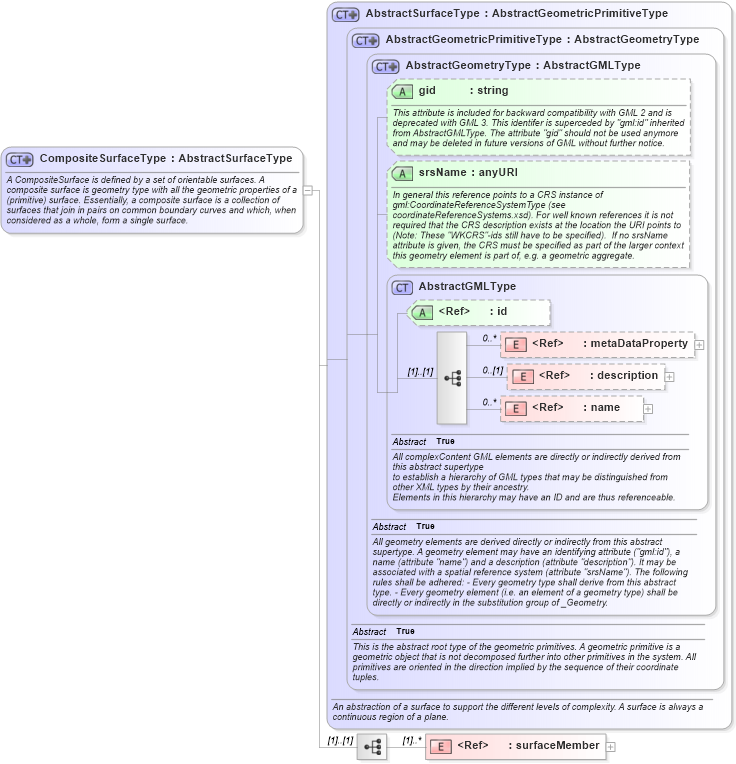

Collapse XSD Schema Diagram:
Drilldown into surfaceMember in schema geometryaggregates_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into gid in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometricPrimitiveType in schema geometrybasic0d1d_xsd Drilldown into AbstractSurfaceType in schema geometrybasic2d_xsdXSD Diagram of CompositeSurfaceType in schema geometrycomplexes_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="CompositeSurfaceType">
    <annotation>
        <documentation>A CompositeSurface is defined by a set of orientable surfaces. A composite surface is geometry type with all the geometric properties of a (primitive) surface. Essentially, a composite surface is a collection of surfaces that join in pairs on common boundary curves and which, when considered as a whole, form a single surface. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractSurfaceType">
            <sequence>
                <element ref="gml:surfaceMember" maxOccurs="unbounded">
                    <annotation>
                        <documentation>This element references or contains one surface in the composite surface. The surfaces are contiguous.
NOTE: This definition allows for a nested structure, i.e. a CompositeSurface may use, for example, another CompositeSurface as a member.</documentation>
                    </annotation>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
surfaceMember gml:surfaceMember (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
gid gml:gid Optional
srsName gml:srsName Optional
Collapse Derivation Tree:
Collapse References:
gml:CompositeSurface
