Documentation for Geography Markup Language
Definition Type: ComplexType
Name: CompositeValueType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractGMLType
Containing Schema: valueObjects.xsd
Abstract
Documentation:
Aggregate value built from other Values using the Composite pattern. It contains zero or an arbitrary number of valueComponent elements, and zero or one valueComponents elements. It may be used for strongly coupled aggregates (vectors, tensors) or for arbitrary collections of values.

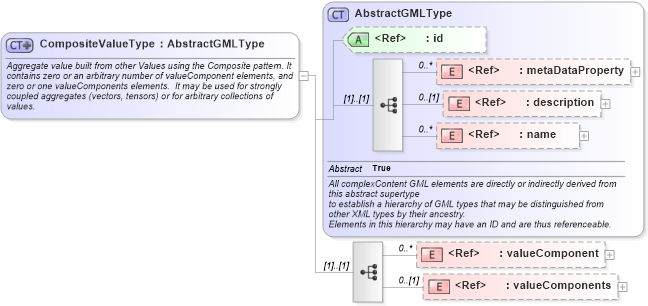

Collapse XSD Schema Diagram:
Drilldown into valueComponents in schema valueobjects_xsd Drilldown into valueComponent in schema valueobjects_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsdXSD Diagram of CompositeValueType in schema valueobjects_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="CompositeValueType">
    <annotation>
        <documentation>Aggregate value built from other Values using the Composite pattern. It contains zero or an arbitrary number of valueComponent elements, and zero or one valueComponents elements.  It may be used for strongly coupled aggregates (vectors, tensors) or for arbitrary collections of values.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractGMLType">
            <sequence>
                <element ref="gml:valueComponent" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:valueComponents" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
valueComponent gml:valueComponent 0 unbounded
valueComponents gml:valueComponents 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:CompositeValuegml:ValueArrayType,
