Documentation for Geography Markup Language
Definition Type: ComplexType
Name: ConcatenatedOperationRefType
Namespace: http://www.opengis.net/gml
Type: gml:CoordinateOperationRefType
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
Association to a concatenated operation, either referencing or containing the definition of that concatenated operation.

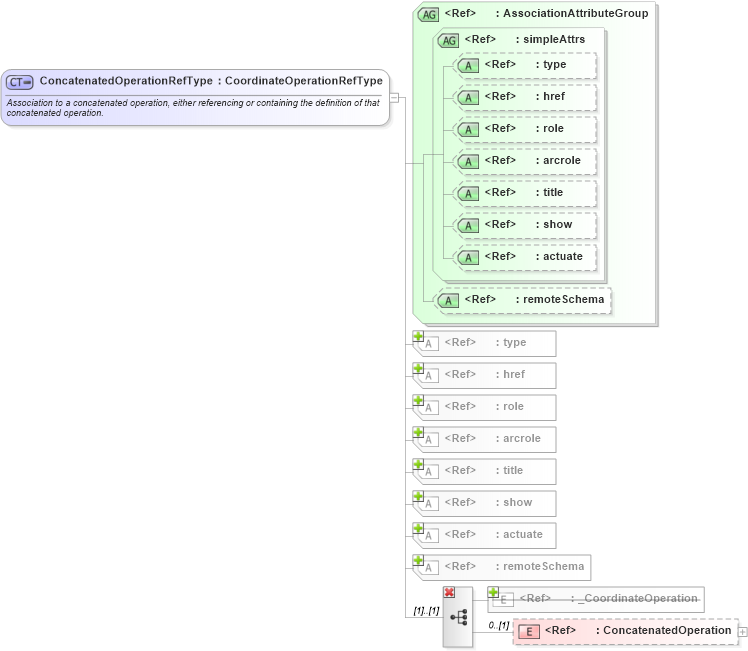

Collapse XSD Schema Diagram:
Drilldown into ConcatenatedOperation in schema coordinateoperations_xsd Drilldown into _CoordinateOperation in schema coordinateoperations_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of ConcatenatedOperationRefType in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="ConcatenatedOperationRefType">
    <annotation>
        <documentation>Association to a concatenated operation, either referencing or containing the definition of that concatenated operation. </documentation>
    </annotation>
    <complexContent>
        <restriction base="gml:CoordinateOperationRefType">
            <sequence>
                <element ref="gml:ConcatenatedOperation" minOccurs="0" />
            </sequence>
            <attributeGroup ref="gml:AssociationAttributeGroup" />
        </restriction>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Definition gml:Definition 0 (1)
_CoordinateOperation gml:_CoordinateOperation 0 (1)
ConcatenatedOperation gml:ConcatenatedOperation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
Collapse References:
gml:concatenatedOperationRef
