Documentation for Geography Markup Language
Definition Type: ComplexType
Name: FileType
Namespace: http://www.opengis.net/gml
Containing Schema: coverage.xsd
Abstract
Collapse XSD Schema Diagram:

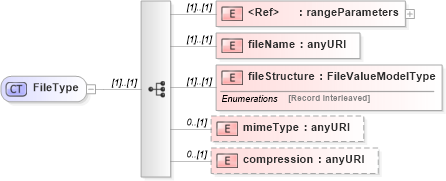

Drilldown into compression in schema coverage_xsd Drilldown into mimeType in schema coverage_xsd Drilldown into fileStructure in schema coverage_xsd Drilldown into fileName in schema coverage_xsd Drilldown into rangeParameters in schema coverage_xsdXSD Diagram of FileType in schema coverage_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="FileType">
    <sequence>
        <element ref="gml:rangeParameters" />
        <element name="fileName" type="anyURI" />
        <element name="fileStructure" type="gml:FileValueModelType" />
        <element name="mimeType" type="anyURI" minOccurs="0" />
        <element name="compression" type="anyURI" minOccurs="0" />
    </sequence>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rangeParameters gml:rangeParameters (1) (1)
fileName gml:fileName (1) (1)
fileStructure gml:fileStructure (1) (1)
mimeType gml:mimeType 0 (1)
compression gml:compression 0 (1)
Collapse Derivation Tree:
Collapse References:
gml:File
