Documentation for Geography Markup Language
Definition Type: Element
Name: lineStringProperty
Namespace: http://www.opengis.net/gml
Type: gml:LineStringPropertyType
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
Deprecated with GML 3.0 and included only for backwards compatibility with GML 2.0. Use "curveProperty" instead. This property element either references a line string via the XLink-attributes or contains the line string element.

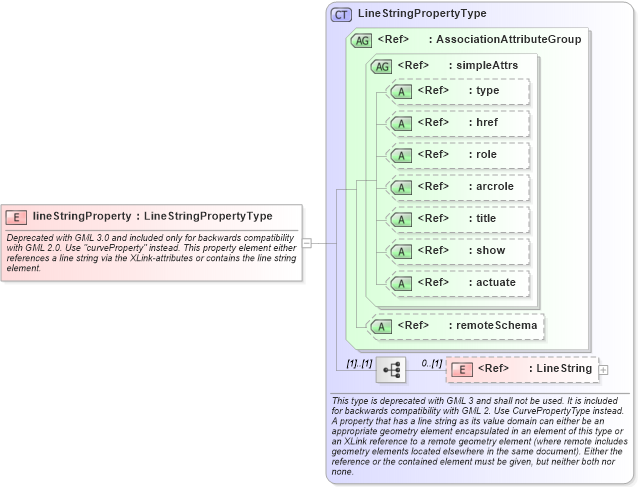

Collapse XSD Schema Diagram:
Drilldown into LineString in schema geometrybasic0d1d_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into LineStringPropertyType in schema geometrybasic0d1d_xsdXSD Diagram of lineStringProperty in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="lineStringProperty" type="gml:LineStringPropertyType">
    <annotation>
        <documentation>Deprecated with GML 3.0 and included only for backwards compatibility with GML 2.0. Use "curveProperty" instead. This property element either references a line string via the XLink-attributes or contains the line string element.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineString gml:LineString 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
