Definition Type: ComplexType
Name: OrientableSurfaceType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractSurfaceType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
OrientableSurface consists of a surface and an orientation. If the orientation is "+", then the OrientableSurface is identical to the baseSurface. If the orientation is "-", then the OrientableSurface is a reference to a Surface with an up-normal that reverses the direction for this OrientableSurface, the sense of "the top of the surface".

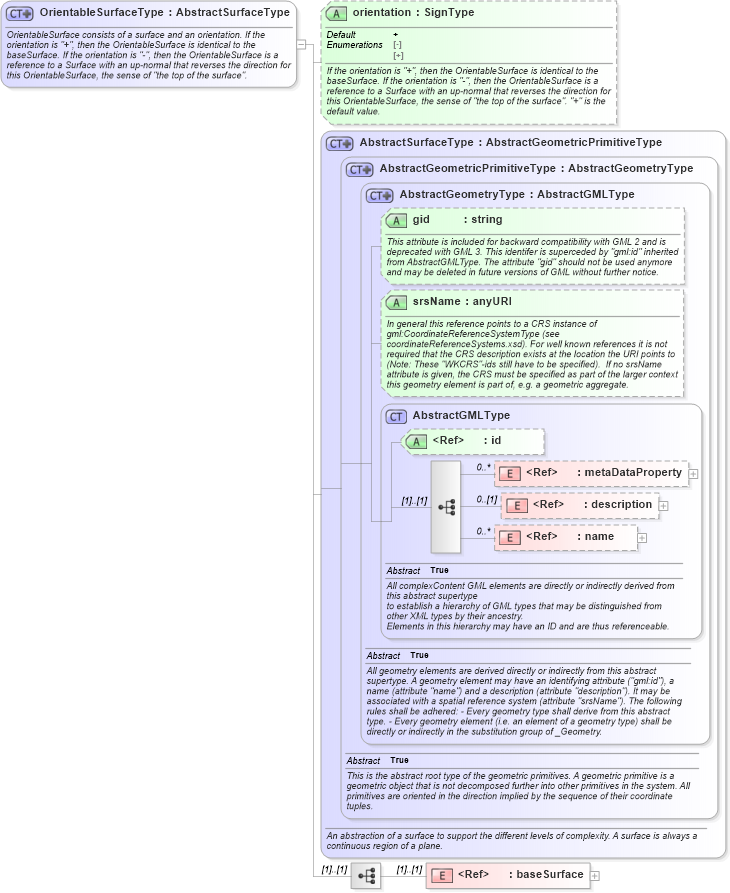

Collapse XSD Schema Diagram:
Drilldown into baseSurface in schema geometryprimitives_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into gid in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometricPrimitiveType in schema geometrybasic0d1d_xsd Drilldown into AbstractSurfaceType in schema geometrybasic2d_xsd Drilldown into orientation in schema geometryprimitives_xsdXSD Diagram of OrientableSurfaceType in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="OrientableSurfaceType">
    <annotation>
        <documentation>
				OrientableSurface consists of a surface and an orientation. If the orientation is "+", then the OrientableSurface is identical to the baseSurface. If the orientation is "-", then the OrientableSurface is a reference to a Surface with an up-normal that reverses the direction for this OrientableSurface, the sense of "the top of the surface".
			</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractSurfaceType">
            <sequence>
                <element ref="gml:baseSurface">
                    <annotation>
                        <documentation>References or contains the base surface (positive orientation).</documentation>
                    </annotation>
                </element>
            </sequence>
            <attribute name="orientation" type="gml:SignType" default="+">
                <annotation>
                    <documentation>If the orientation is "+", then the OrientableSurface is identical to the baseSurface. If the orientation is "-", then the OrientableSurface is a reference to a Surface with an up-normal that reverses the direction for this OrientableSurface, the sense of "the top of the surface". "+" is the default value.</documentation>
                </annotation>
            </attribute>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
baseSurface gml:baseSurface (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
gid gml:gid Optional
srsName gml:srsName Optional
orientation gml:orientation + (Optional)
Collapse Derivation Tree:
Collapse References:
gml:OrientableSurface
