Documentation for Geography Markup Language
Definition Type: ComplexType
Name: PointPropertyType
Namespace: http://www.opengis.net/gml
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
A property that has a point as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.

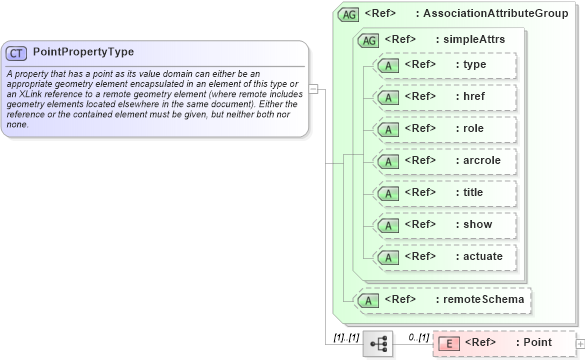

Collapse XSD Schema Diagram:
Drilldown into Point in schema geometrybasic0d1d_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of PointPropertyType in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="PointPropertyType">
    <annotation>
        <documentation>A property that has a point as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.</documentation>
    </annotation>
    <sequence>
        <element ref="gml:Point" minOccurs="0" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup">
        <annotation>
            <documentation>This attribute group includes the XLink attributes (see xlinks.xsd). XLink is used in GML to reference remote resources (including those elsewhere in the same document). A simple link element can be constructed by including a specific set of XLink attributes. The XML Linking Language (XLink) is currently a Proposed Recommendation of the World Wide Web Consortium. XLink allows elements to be inserted into XML documents so as to create sophisticated links between resources; such links can be used to reference remote properties. A simple link element can be used to implement pointer functionality, and this functionality has been built into various GML 3 elements by including the gml:AssociationAttributeGroup. 				</documentation>
        </annotation>
    </attributeGroup>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Point gml:Point 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
Collapse References:
gml:centerOf, gml:origingml:pointMember, gml:pointProperty, gml:pointRep, gml:position,
