Definition Type: ComplexType
Name: PolygonPatchType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractSurfacePatchType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A PolygonPatch is a surface patch that is defined by a set of boundary curves and an underlying surface to which these curves adhere. The curves are coplanar and the polygon uses planar interpolation in its interior. Implements GM_Polygon of ISO 19107.
Collapse XSD Schema Diagram:

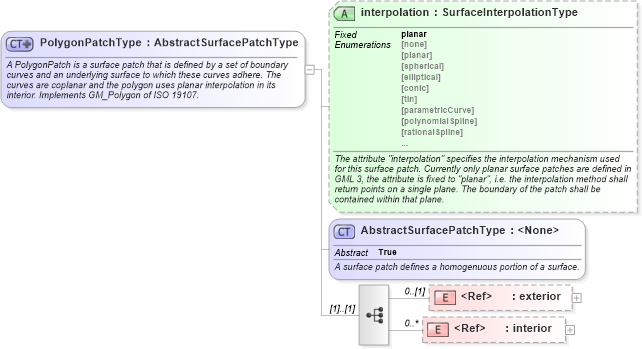

Drilldown into interior in schema geometrybasic2d_xsd Drilldown into exterior in schema geometrybasic2d_xsd Drilldown into AbstractSurfacePatchType in schema geometryprimitives_xsd Drilldown into interpolation in schema geometryprimitives_xsdXSD Diagram of PolygonPatchType in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="PolygonPatchType">
    <annotation>
        <documentation>
				A PolygonPatch is a surface patch that is defined by a set of boundary curves and an underlying surface to which these curves adhere. The curves are coplanar and the polygon uses planar interpolation in its interior. Implements GM_Polygon of ISO 19107.
			</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractSurfacePatchType">
            <sequence>
                <element ref="gml:exterior" minOccurs="0" />
                <element ref="gml:interior" minOccurs="0" maxOccurs="unbounded" />
            </sequence>
            <attribute name="interpolation" type="gml:SurfaceInterpolationType" fixed="planar">
                <annotation>
                    <documentation>The attribute "interpolation" specifies the interpolation mechanism used for this surface patch. Currently only planar surface patches are defined in GML 3, the attribute is fixed to "planar", i.e. the interpolation method shall return points on a single plane. The boundary of the patch shall be contained within that plane.</documentation>
                </annotation>
            </attribute>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exterior gml:exterior 0 (1)
interior gml:interior 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
interpolation gml:interpolation (Optional)
Collapse Derivation Tree:
Collapse References:
gml:PolygonPatch
