Documentation for Geography Markup Language
Definition Type: ComplexType
Name: StringOrRefType
Namespace: http://www.opengis.net/gml
Type: string:http://www.w3.org/2001/XMLSchema
Containing Schema: gmlBase.xsd
Abstract
Documentation:
This type is available wherever there is a need for a "text" type property. It is of string type, so the text can be included inline, but the value can also be referenced remotely via xlinks from the AssociationAttributeGroup. If the remote reference is present, then the value obtained by traversing the link should be used, and the string content of the element can be used for an annotation.

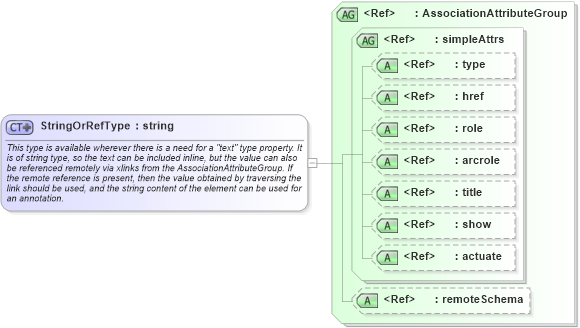

Collapse XSD Schema Diagram:
Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of StringOrRefType in schema gmlbase_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="StringOrRefType">
    <annotation>
        <documentation>
This type is available wherever there is a need for a "text" type property. It is of string type, so the text can be included inline, but the value can also be referenced remotely via xlinks from the AssociationAttributeGroup. If the remote reference is present, then the value obtained by traversing the link should be used, and the string content of the element can be used for an annotation.  </documentation>
    </annotation>
    <simpleContent>
        <extension base="string">
            <attributeGroup ref="gml:AssociationAttributeGroup" />
        </extension>
    </simpleContent>
</complexType>
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
Collapse References:
gml:dataSource, gml:description, gml:DirectionString, gml:LocationString, gml:MappingRule, gml:quantityTypegml:remarks, gml:status,
