Documentation for Geography Markup Language
Definition Type: ComplexType
Name: SymbolType
Namespace: http://www.opengis.net/gml
Type: gml:AssociationType
Containing Schema: defaultStyle.xsd
Abstract
Documentation:
[complexType of] The symbol property. Extends the gml:AssociationType to allow for remote referencing of symbols.

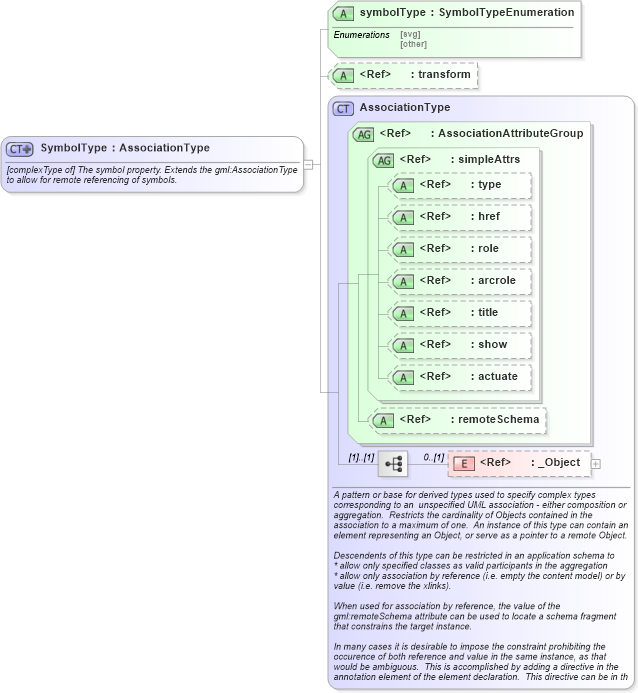

Collapse XSD Schema Diagram:
Drilldown into _Object in schema gmlbase_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into AssociationType in schema gmlbase_xsd Drilldown into transform in schema defaultstyle_xsd Drilldown into symbolType in schema defaultstyle_xsdXSD Diagram of SymbolType in schema defaultstyle_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="SymbolType" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <xsd:annotation>
        <xsd:documentation>[complexType of] The symbol property. Extends the gml:AssociationType to allow for remote referencing of symbols.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="gml:AssociationType">
            <xsd:attribute name="symbolType" type="gml:SymbolTypeEnumeration" use="required" />
            <xsd:attribute ref="gml:transform" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
_Object gml:_Object 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
symbolType gml:symbolType Required
transform gml:transform Optional
Collapse Derivation Tree:
Collapse References:
gml:symbol
