Documentation for Geography Markup Language
Definition Type: ComplexType
Name: TimeCoordinateSystemType
Namespace: http://www.opengis.net/gml
Type: gml:TimeReferenceSystemType
Containing Schema: temporal.xsd
Abstract
Documentation:
A temporal coordinate system is based on a continuous interval scale defined in terms of a single time interval.

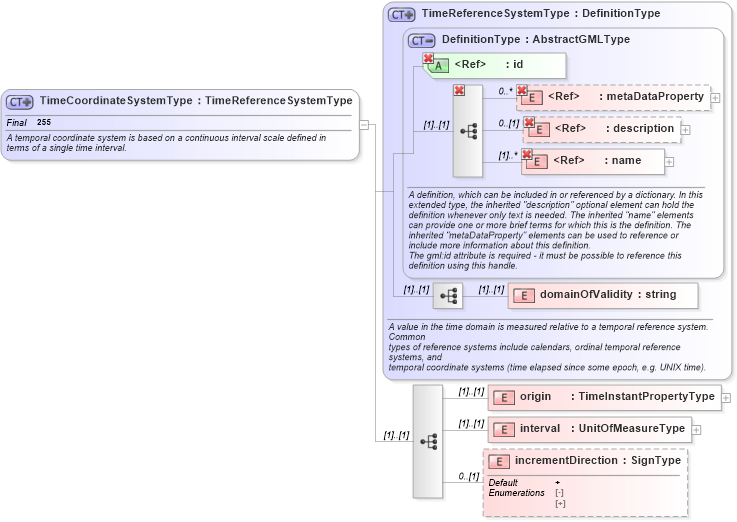

Collapse XSD Schema Diagram:
Drilldown into incrementDirection in schema temporal_xsd Drilldown into interval in schema temporal_xsd Drilldown into origin in schema temporal_xsd Drilldown into domainOfValidity in schema temporal_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into DefinitionType in schema dictionary_xsd Drilldown into TimeReferenceSystemType in schema temporal_xsdXSD Diagram of TimeCoordinateSystemType in schema temporal_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="TimeCoordinateSystemType" final="#all">
    <annotation>
        <documentation xml:lang="en">
      A temporal coordinate system is based on a continuous interval scale defined in terms of a single time interval.
      </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:TimeReferenceSystemType">
            <sequence>
                <element name="origin" type="gml:TimeInstantPropertyType" />
                <element name="interval" type="gml:UnitOfMeasureType" />
                <element name="incrementDirection" type="gml:SignType" default="+" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
domainOfValidity gml:domainOfValidity (1) (1)
origin gml:origin (1) (1)
interval gml:interval (1) (1)
incrementDirection gml:incrementDirection 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:TimeCoordinateSystem
