Documentation for Geography Markup Language
Definition Type: ComplexType
Name: TopoComplexType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractTopologyType
Containing Schema: topology.xsd
Abstract
Documentation:
This type represents a TP_Complex capable of holding topological primitives.

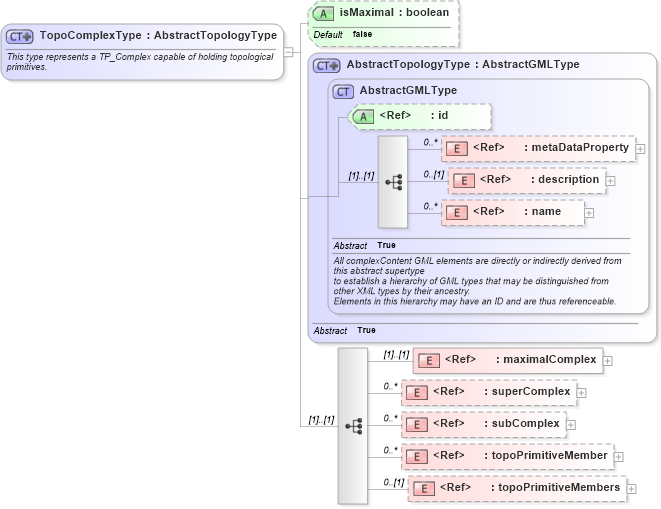

Collapse XSD Schema Diagram:
Drilldown into topoPrimitiveMembers in schema topology_xsd Drilldown into topoPrimitiveMember in schema topology_xsd Drilldown into subComplex in schema topology_xsd Drilldown into superComplex in schema topology_xsd Drilldown into maximalComplex in schema topology_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTopologyType in schema topology_xsd Drilldown into isMaximal in schema topology_xsdXSD Diagram of TopoComplexType in schema topology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="TopoComplexType">
    <annotation>
        <documentation>This type represents a TP_Complex capable of holding topological primitives.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractTopologyType">
            <sequence>
                <element ref="gml:maximalComplex" />
                <element ref="gml:superComplex" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:subComplex" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:topoPrimitiveMember" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:topoPrimitiveMembers" minOccurs="0" />
            </sequence>
            <attribute name="isMaximal" type="boolean" default="false" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
maximalComplex gml:maximalComplex (1) (1)
superComplex gml:superComplex 0 unbounded
subComplex gml:subComplex 0 unbounded
topoPrimitiveMember gml:topoPrimitiveMember 0 unbounded
topoPrimitiveMembers gml:topoPrimitiveMembers 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
isMaximal gml:isMaximal false (Optional)
Collapse Derivation Tree:
Collapse References:
gml:TopoComplex
