Documentation for Geography Markup Language
Definition Type: ComplexType
Name: TopologyStyleType
Namespace: http://www.opengis.net/gml
Type: gml:BaseStyleDescriptorType
Containing Schema: defaultStyle.xsd
Abstract
Documentation:
[complexType of] The style descriptor for topologies of a feature. Describes individual topology elements styles.

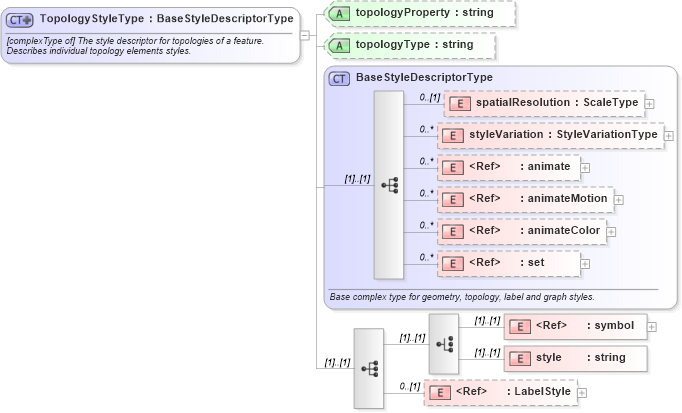

Collapse XSD Schema Diagram:
Drilldown into LabelStyle in schema defaultstyle_xsd Drilldown into style in schema defaultstyle_xsd Drilldown into symbol in schema defaultstyle_xsd Drilldown into set in schema smil20_xsd Drilldown into animateColor in schema smil20_xsd Drilldown into animateMotion in schema smil20_xsd Drilldown into animate in schema smil20_xsd Drilldown into styleVariation in schema defaultstyle_xsd Drilldown into spatialResolution in schema defaultstyle_xsd Drilldown into BaseStyleDescriptorType in schema defaultstyle_xsd Drilldown into topologyType in schema defaultstyle_xsd Drilldown into topologyProperty in schema defaultstyle_xsdXSD Diagram of TopologyStyleType in schema defaultstyle_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="TopologyStyleType" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <xsd:annotation>
        <xsd:documentation>[complexType of] The style descriptor for topologies of a feature. Describes individual topology elements styles.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="gml:BaseStyleDescriptorType">
            <xsd:sequence>
                <xsd:choice>
                    <xsd:element ref="gml:symbol" />
                    <xsd:element name="style" type="string" />
                </xsd:choice>
                <xsd:element ref="gml:LabelStyle" minOccurs="0" />
            </xsd:sequence>
            <xsd:attribute name="topologyProperty" type="string" />
            <xsd:attribute name="topologyType" type="string" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
spatialResolution gml:spatialResolution 0 (1)
styleVariation gml:styleVariation 0 unbounded
animate smil20:animate 0 unbounded
animateMotion smil20:animateMotion 0 unbounded
animateColor smil20:animateColor 0 unbounded
set smil20:set 0 unbounded
symbol gml:symbol (1) (1)
style gml:style (1) (1)
LabelStyle gml:LabelStyle 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
topologyProperty gml:topologyProperty (Optional)
topologyType gml:topologyType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:TopologyStyle
