Documentation for Geography Markup Language
Definition Type: ComplexType
Name: TopoSolidType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractTopoPrimitiveType
Containing Schema: topology.xsd
Abstract
Documentation:
The topological boundary of a TopoSolid consists of a set of directed faces. Note that all faces associated with the TopoSolid, including dangling faces, appear in the boundary. The coboundary of a TopoSolid is empty and hence requires no representation.

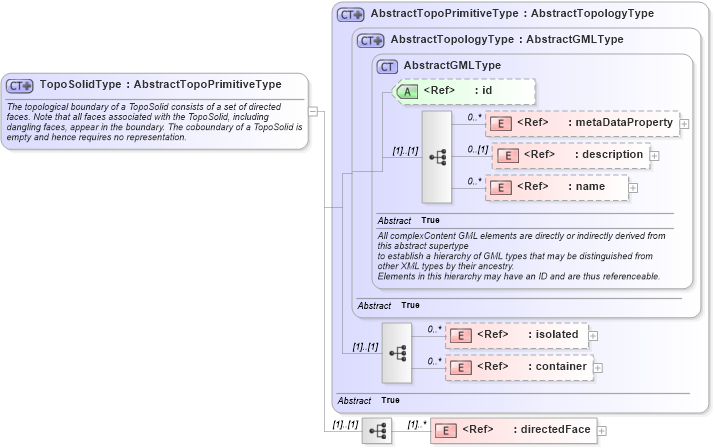

Collapse XSD Schema Diagram:
Drilldown into directedFace in schema topology_xsd Drilldown into container in schema topology_xsd Drilldown into isolated in schema topology_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTopologyType in schema topology_xsd Drilldown into AbstractTopoPrimitiveType in schema topology_xsdXSD Diagram of TopoSolidType in schema topology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="TopoSolidType">
    <annotation>
        <documentation>The topological boundary of a TopoSolid consists of a set of directed faces. Note that all faces associated with the TopoSolid, including dangling faces, appear in the boundary. The coboundary of a TopoSolid is empty and hence requires no representation.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractTopoPrimitiveType">
            <sequence>
                <element ref="gml:directedFace" maxOccurs="unbounded" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
isolated gml:isolated 0 unbounded
container gml:container 0 unbounded
directedFace gml:directedFace (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:TopoSolid
