Documentation for Geography Markup Language
Definition Type: ComplexType
Name: UnitDefinitionType
Namespace: http://www.opengis.net/gml
Type: gml:DefinitionType
Containing Schema: units.xsd
Abstract
Documentation:
Definition of a unit of measure (or uom). The definition includes a quantityType property, which indicates the phenomenon to which the units apply, and a catalogSymbol, which gives the short symbol used for this unit. This element is used when the relationship of this unit to other units or units systems is unknown.

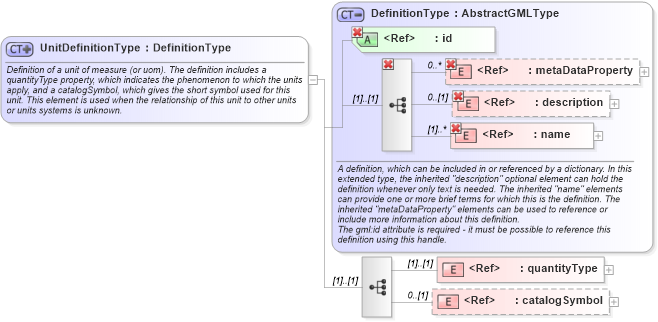

Collapse XSD Schema Diagram:
Drilldown into catalogSymbol in schema units_xsd Drilldown into quantityType in schema units_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into DefinitionType in schema dictionary_xsdXSD Diagram of UnitDefinitionType in schema units_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="UnitDefinitionType">
    <annotation>
        <documentation>Definition of a unit of measure (or uom). The definition includes a quantityType property, which indicates the phenomenon to which the units apply, and a catalogSymbol, which gives the short symbol used for this unit. This element is used when the relationship of this unit to other units or units systems is unknown.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:DefinitionType">
            <sequence>
                <element ref="gml:quantityType" />
                <element ref="gml:catalogSymbol" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
quantityType gml:quantityType (1) (1)
catalogSymbol gml:catalogSymbol 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:BaseUnitType, gml:ConventionalUnitType, gml:DerivedUnitType, gml:UnitDefinition
