Documentation for Geography Markup Language
Definition Type: ComplexType
Name: ValuePropertyType
Namespace: http://www.opengis.net/gml
Containing Schema: valueObjects.xsd
Abstract
Documentation:
GML property which refers to, or contains, a Value

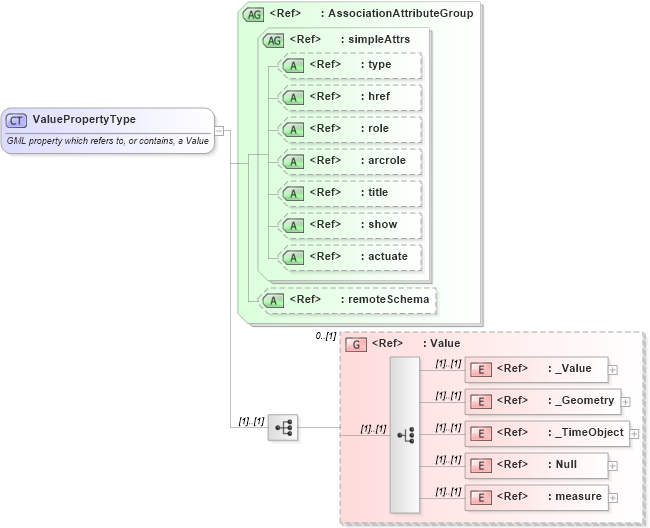

Collapse XSD Schema Diagram:
Drilldown into measure in schema measures_xsd Drilldown into Null in schema basictypes_xsd Drilldown into _TimeObject in schema temporal_xsd Drilldown into _Geometry in schema geometrybasic0d1d_xsd Drilldown into _Value in schema valueobjects_xsd Drilldown into Value in schema valueobjects_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of ValuePropertyType in schema valueobjects_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="ValuePropertyType">
    <annotation>
        <documentation>GML property which refers to, or contains, a Value</documentation>
    </annotation>
    <sequence>
        <group ref="gml:Value" minOccurs="0" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
_Value gml:_Value (1) (1)
_Geometry gml:_Geometry (1) (1)
_TimeObject gml:_TimeObject (1) (1)
Null gml:Null (1) (1)
measure gml:measure (1) (1)
<xs:group> gml:Value 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
Collapse References:
gml:BooleanPropertyType, gml:CategoryPropertyType, gml:CountPropertyType, gml:QuantityPropertyType, gml:valueComponent, gml:valueProperty
