Documentation for Geography Markup Language
Definition Type: Element
Name: _Operation
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCoordinateOperationType
Containing Schema: coordinateOperations.xsd
Abstract True
Documentation:
A parameterized mathematical operation on coordinates that transforms or converts coordinates to another coordinate reference system. This coordinate operation uses an operation method, usually with associated parameter values. However, operation methods and parameter values are directly associated with concrete subtypes, not with this abstract type. This abstract complexType shall not be directly used, extended, or restricted in a compliant Application Schema.

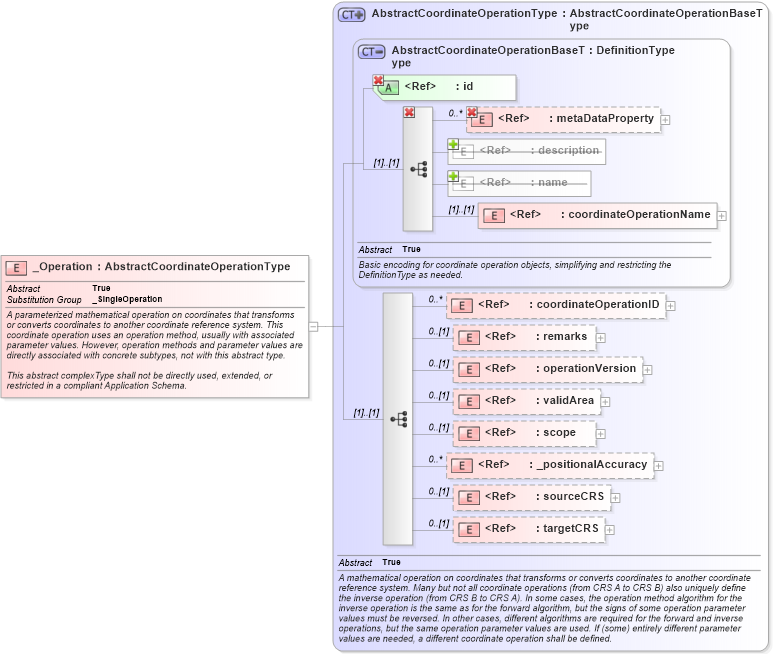

Collapse XSD Schema Diagram:
Drilldown into targetCRS in schema coordinateoperations_xsd Drilldown into sourceCRS in schema coordinateoperations_xsd Drilldown into _positionalAccuracy in schema dataquality_xsd Drilldown into scope in schema referencesystems_xsd Drilldown into validArea in schema referencesystems_xsd Drilldown into operationVersion in schema coordinateoperations_xsd Drilldown into remarks in schema referencesystems_xsd Drilldown into coordinateOperationID in schema coordinateoperations_xsd Drilldown into coordinateOperationName in schema coordinateoperations_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractCoordinateOperationBaseType in schema coordinateoperations_xsd Drilldown into AbstractCoordinateOperationType in schema coordinateoperations_xsdXSD Diagram of _Operation in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="_Operation" type="gml:AbstractCoordinateOperationType" abstract="true" substitutionGroup="gml:_SingleOperation">
    <annotation>
        <documentation>A parameterized mathematical operation on coordinates that transforms or converts coordinates to another coordinate reference system. This coordinate operation uses an operation method, usually with associated parameter values. However, operation methods and parameter values are directly associated with concrete subtypes, not with this abstract type.

This abstract complexType shall not be directly used, extended, or restricted in a compliant Application Schema. </documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
coordinateOperationName gml:coordinateOperationName (1) (1)
coordinateOperationID gml:coordinateOperationID 0 unbounded
remarks gml:remarks 0 (1)
operationVersion gml:operationVersion 0 (1)
validArea gml:validArea 0 (1)
scope gml:scope 0 (1)
_positionalAccuracy gml:_positionalAccuracy 0 unbounded
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:_SingleOperation
