Documentation for Geography Markup Language
Definition Type: Element
Name: _TimeComplex
Namespace: http://www.opengis.net/gml
Type: gml:AbstractTimeComplexType
Containing Schema: temporal.xsd
Abstract True
Documentation:
This abstract element acts as the head of the substitution group for temporal complexes. Temporal complex is an aggregation of temporal primitives as its components, represents a temporal geometric complex and a temporal topology complex. N.B. Temporal geometric complex is not defined in this schema.

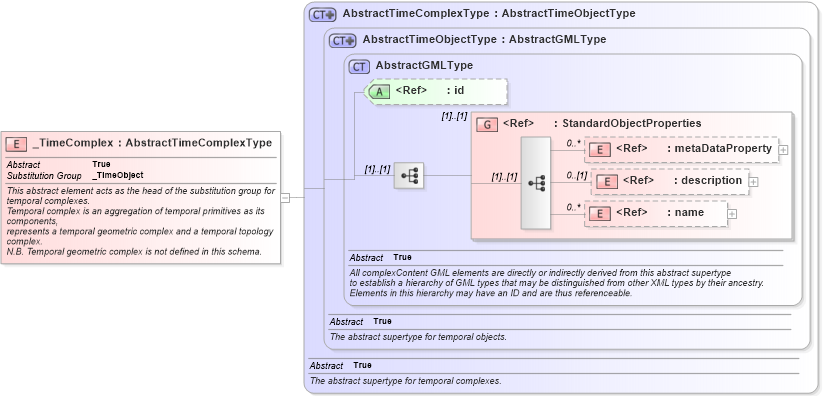

Collapse XSD Schema Diagram:
Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTimeObjectType in schema temporal_xsd Drilldown into AbstractTimeComplexType in schema temporal_xsdXSD Diagram of _TimeComplex in schema temporal_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="_TimeComplex" type="gml:AbstractTimeComplexType" abstract="true" substitutionGroup="gml:_TimeObject">
    <annotation>
        <documentation xml:lang="en">This abstract element acts as the head of the substitution group for temporal complexes.
			Temporal complex is an aggregation of temporal primitives as its components,
			represents a temporal geometric complex and a temporal topology complex.
			N.B. Temporal geometric complex is not defined in this schema.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:_TimeObject
