Documentation for Geography Markup Language
Definition Type: Element
Name: _TimeGeometricPrimitive
Namespace: http://www.opengis.net/gml
Type: gml:AbstractTimeGeometricPrimitiveType
Containing Schema: temporal.xsd
Abstract True
Documentation:
This abstract element acts as the head of the substitution group for temporal geometric primitives.

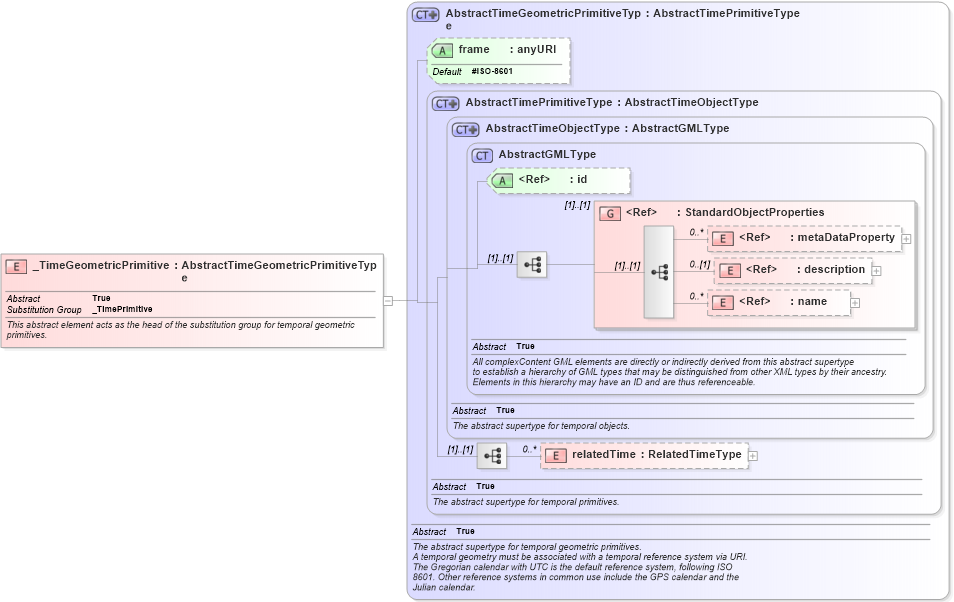

Collapse XSD Schema Diagram:
Drilldown into relatedTime in schema temporal_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTimeObjectType in schema temporal_xsd Drilldown into AbstractTimePrimitiveType in schema temporal_xsd Drilldown into frame in schema temporal_xsd Drilldown into AbstractTimeGeometricPrimitiveType in schema temporal_xsdXSD Diagram of _TimeGeometricPrimitive in schema temporal_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="_TimeGeometricPrimitive" type="gml:AbstractTimeGeometricPrimitiveType" abstract="true" substitutionGroup="gml:_TimePrimitive">
    <annotation>
        <documentation xml:lang="en">This abstract element acts as the head of the substitution group for temporal geometric primitives.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
relatedTime gml:relatedTime 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
frame gml:frame #ISO-8601 Optional
Collapse Derivation Tree:
Collapse References:
gml:_TimePrimitive
