Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractFeatureCollectionType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractFeatureType
Containing Schema: feature.xsd
Abstract True
Documentation:
A feature collection contains zero or more features.

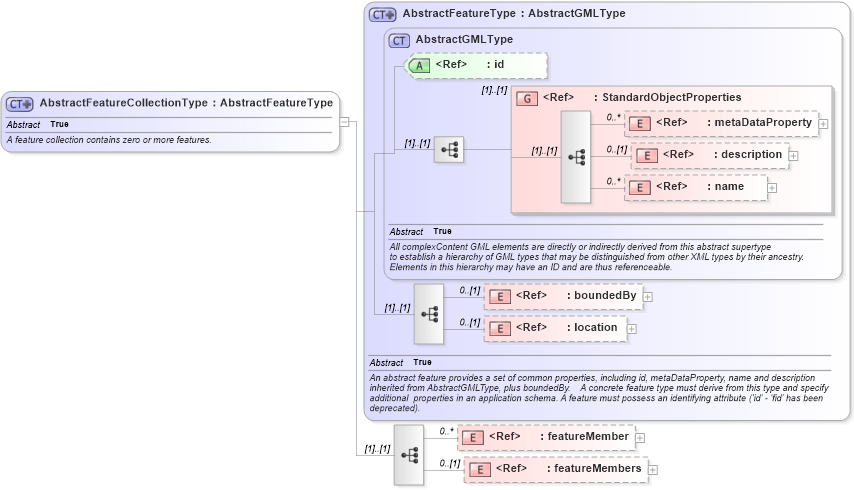

Collapse XSD Schema Diagram:
Drilldown into featureMembers in schema feature_xsd Drilldown into featureMember in schema feature_xsd Drilldown into location in schema feature_xsd Drilldown into boundedBy in schema feature_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractFeatureType in schema feature_xsdXSD Diagram of AbstractFeatureCollectionType in schema feature_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractFeatureCollectionType" abstract="true">
    <annotation>
        <documentation>A feature collection contains zero or more features.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractFeatureType">
            <sequence>
                <element ref="gml:featureMember" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:featureMembers" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
featureMember gml:featureMember 0 unbounded
featureMembers gml:featureMembers 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:_FeatureCollectiongml:FeatureCollectionType,
