Documentation for Geography Markup Language
Definition Type: ComplexType
Name: ContainerPropertyType
Namespace: http://www.opengis.net/gml
Containing Schema: topology.xsd
Abstract

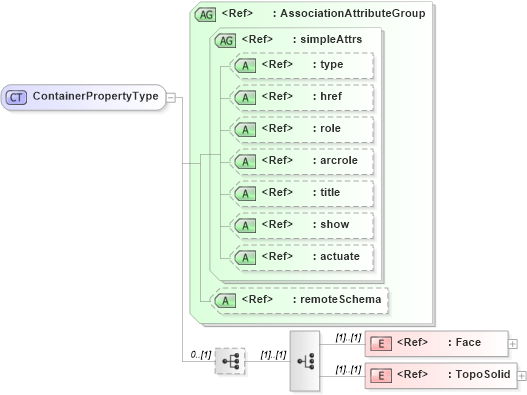

Collapse XSD Schema Diagram:
Drilldown into TopoSolid in schema topology_xsd Drilldown into Face in schema topology_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of ContainerPropertyType in schema topology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="ContainerPropertyType">
    <sequence minOccurs="0">
        <choice>
            <element ref="gml:Face" />
            <element ref="gml:TopoSolid" />
        </choice>
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Face gml:Face (1) (1)
TopoSolid gml:TopoSolid (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
Collapse References:
gml:container
