Documentation for Geography Markup Language
Definition Type: ComplexType
Name: DirectPositionType
Namespace: http://www.opengis.net/gml
Type: gml:doubleList
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
DirectPosition instances hold the coordinates for a position within some coordinate reference system (CRS). Since DirectPositions, as data types, will often be included in larger objects (such as geometry elements) that have references to CRS, the "srsName" attribute will in general be missing, if this particular DirectPosition is included in a larger element with such a reference to a CRS. In this case, the CRS is implicitly assumed to take on the value of the containing object's CRS.

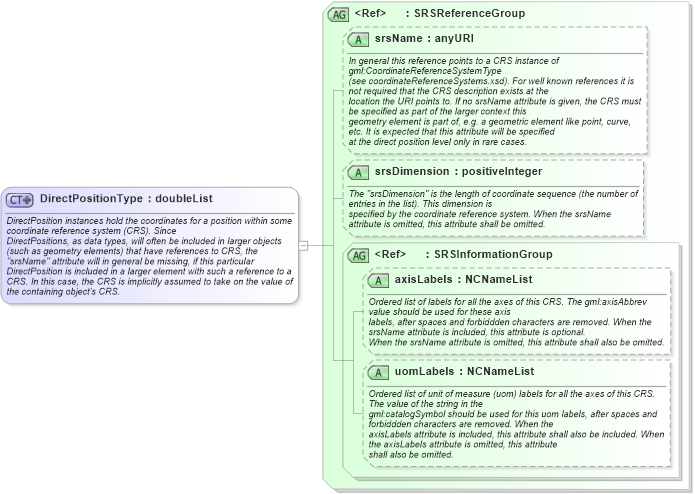

Collapse XSD Schema Diagram:
Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsdXSD Diagram of DirectPositionType in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="DirectPositionType">
    <annotation>
        <documentation>DirectPosition instances hold the coordinates for a position within some coordinate reference system (CRS). Since
			DirectPositions, as data types, will often be included in larger objects (such as geometry elements) that have references to CRS, the
			"srsName" attribute will in general be missing, if this particular DirectPosition is included in a larger element with such a reference to a
			CRS. In this case, the CRS is implicitly assumed to take on the value of the containing object's CRS.</documentation>
    </annotation>
    <simpleContent>
        <extension base="gml:doubleList">
            <attributeGroup ref="gml:SRSReferenceGroup" />
        </extension>
    </simpleContent>
</complexType>
Collapse Child Attributes:
Name Type Default Value Use
srsName gml:srsName Optional
srsDimension gml:srsDimension Optional
axisLabels gml:axisLabels Optional
uomLabels gml:uomLabels Optional
Collapse Derivation Tree:
Collapse References:
gml:locationgml:lowerCorner, gml:pos, gml:upperCorner,
