Definition Type: ComplexType
Name: GeodesicType
Namespace: http://www.opengis.net/gml
Type: gml:GeodesicStringType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A Geodesic consists of two distinct positions joined by a geodesic curve. The control points of a Geodesic shall lie on the geodesic between its start point and end points. Between these two points, a geodesic curve defined from ellipsoid or geoid model used by the co-ordinate reference systems may be used to interpolate other positions. Any other point in the controlPoint array must fall on this geodesic.

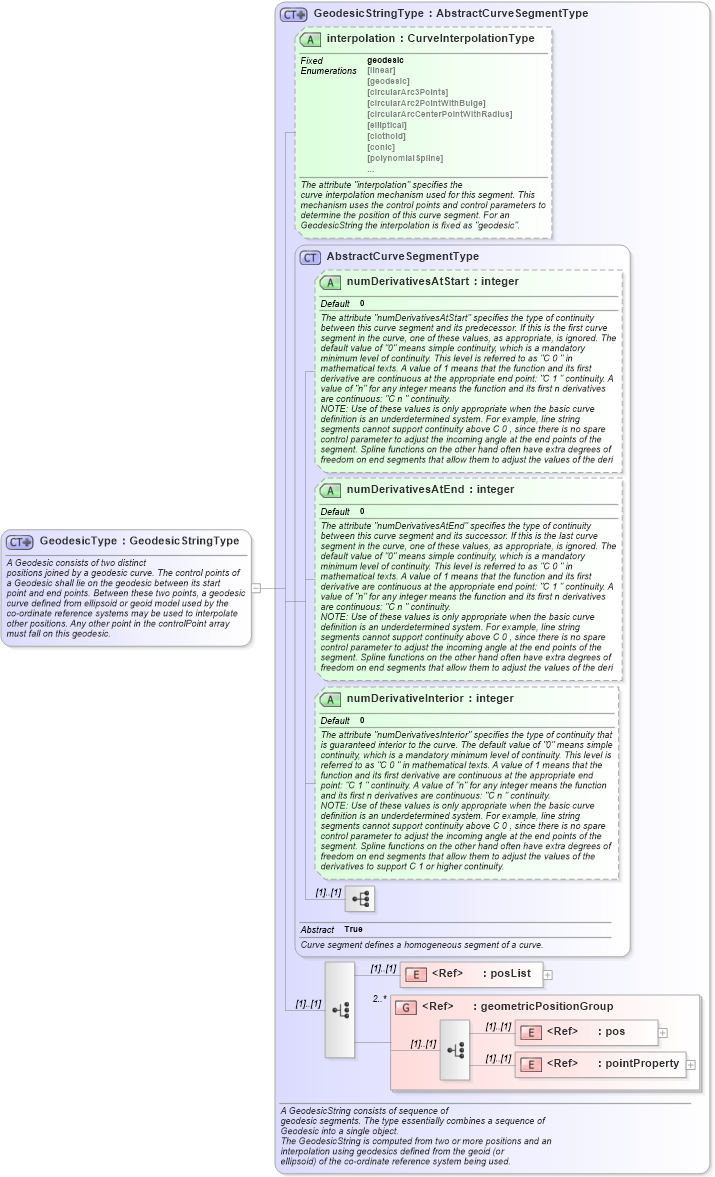

Collapse XSD Schema Diagram:
Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into geometricPositionGroup in schema geometrybasic0d1d_xsd Drilldown into posList in schema geometrybasic0d1d_xsd Drilldown into numDerivativeInterior in schema geometryprimitives_xsd Drilldown into numDerivativesAtEnd in schema geometryprimitives_xsd Drilldown into numDerivativesAtStart in schema geometryprimitives_xsd Drilldown into AbstractCurveSegmentType in schema geometryprimitives_xsd Drilldown into interpolation in schema geometryprimitives_xsd Drilldown into GeodesicStringType in schema geometryprimitives_xsdXSD Diagram of GeodesicType in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="GeodesicType">
    <annotation>
        <documentation>A Geodesic consists of two distinct
   positions joined by a geodesic curve. The control points of
   a Geodesic shall lie on the geodesic between its start
   point and end points. Between these two points, a geodesic
   curve defined from ellipsoid or geoid model used by the
   co-ordinate reference systems may be used to interpolate
   other positions. Any other point in the controlPoint array
   must fall on this geodesic.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:GeodesicStringType" />
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
posList gml:posList (1) (1)
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
<xs:group> gml:geometricPositionGroup 2 unbounded
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 Optional
numDerivativesAtEnd gml:numDerivativesAtEnd 0 Optional
numDerivativeInterior gml:numDerivativeInterior 0 Optional
interpolation gml:interpolation (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Geodesic
