Documentation for Geography Markup Language
Definition Type: Element
Name: GraphStyle
Namespace: http://www.opengis.net/gml
Type: gml:GraphStyleType
Containing Schema: defaultStyle.xsd
Abstract
Documentation:
The style descriptor for a graph consisting of a number of features. Describes graph-specific style attributes.

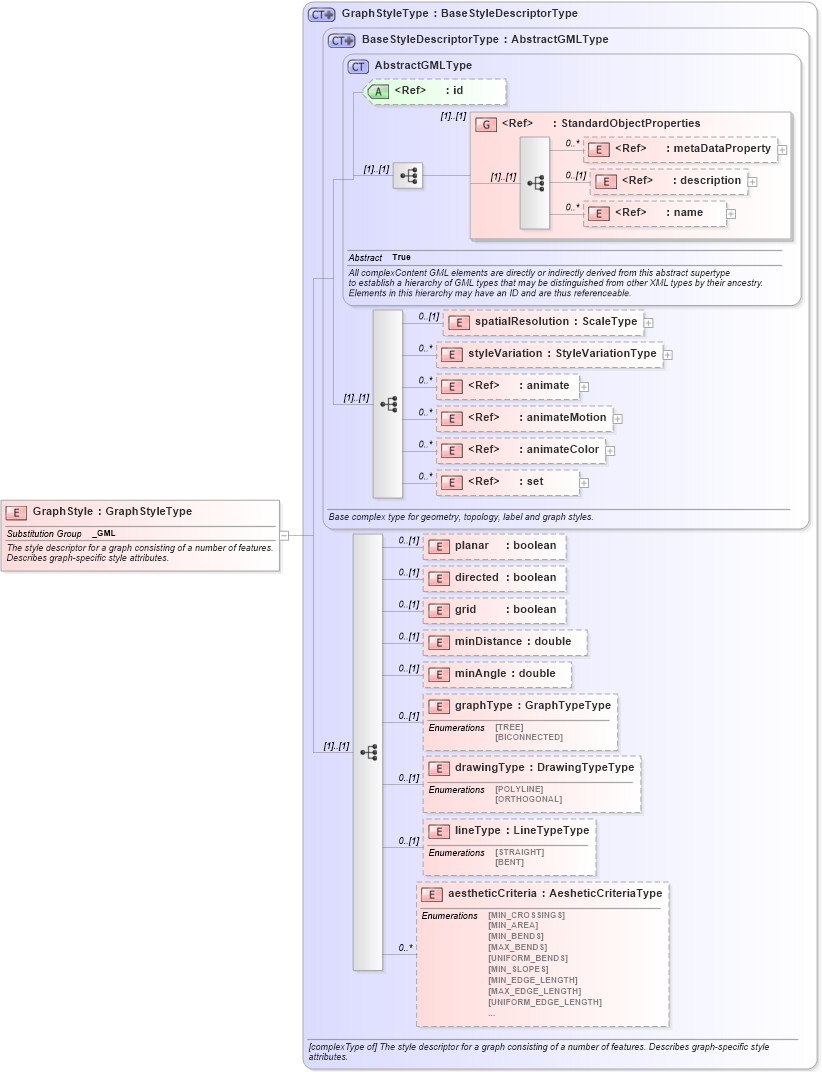

Collapse XSD Schema Diagram:
Drilldown into aestheticCriteria in schema defaultstyle_xsd Drilldown into lineType in schema defaultstyle_xsd Drilldown into drawingType in schema defaultstyle_xsd Drilldown into graphType in schema defaultstyle_xsd Drilldown into minAngle in schema defaultstyle_xsd Drilldown into minDistance in schema defaultstyle_xsd Drilldown into grid in schema defaultstyle_xsd Drilldown into directed in schema defaultstyle_xsd Drilldown into planar in schema defaultstyle_xsd Drilldown into set in schema smil20_xsd Drilldown into animateColor in schema smil20_xsd Drilldown into animateMotion in schema smil20_xsd Drilldown into animate in schema smil20_xsd Drilldown into styleVariation in schema defaultstyle_xsd Drilldown into spatialResolution in schema defaultstyle_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into BaseStyleDescriptorType in schema defaultstyle_xsd Drilldown into GraphStyleType in schema defaultstyle_xsdXSD Diagram of GraphStyle in schema defaultstyle_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="GraphStyle" type="gml:GraphStyleType" substitutionGroup="gml:_GML">
    <annotation>
        <documentation>The style descriptor for a graph consisting of a number of features. Describes graph-specific style attributes.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
spatialResolution gml:spatialResolution 0 (1)
styleVariation gml:styleVariation 0 unbounded
animate smil20:animate 0 unbounded
animateMotion smil20:animateMotion 0 unbounded
animateColor smil20:animateColor 0 unbounded
set smil20:set 0 unbounded
planar gml:planar 0 (1)
directed gml:directed 0 (1)
grid gml:grid 0 (1)
minDistance gml:minDistance 0 (1)
minAngle gml:minAngle 0 (1)
graphType gml:graphType 0 (1)
drawingType gml:drawingType 0 (1)
lineType gml:lineType 0 (1)
aestheticCriteria gml:aestheticCriteria 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:_GML
