Documentation for Geography Markup Language
Definition Type: Element
Name: group
Namespace: http://www.opengis.net/gml
Type: gml:ReferenceType
Containing Schema: temporalReferenceSystems.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
In a particular Time System, an Era may be a member of a group. The "group" element implements the back-pointer to the Era at the next level up in the hierarchy. If the hierarchy is represented by describing the nested components fully in the their nested position inside "member" elements, then the parent can be easily inferred, so the group property is unnecessary. However, if the hierarchy is represented by links carried on the "member" property elements, pointing to Eras described fully elsewhere, then it may be useful for a child (member) era to carry an explicit pointer back to its parent (group) Era.
Collapse XSD Schema Diagram:

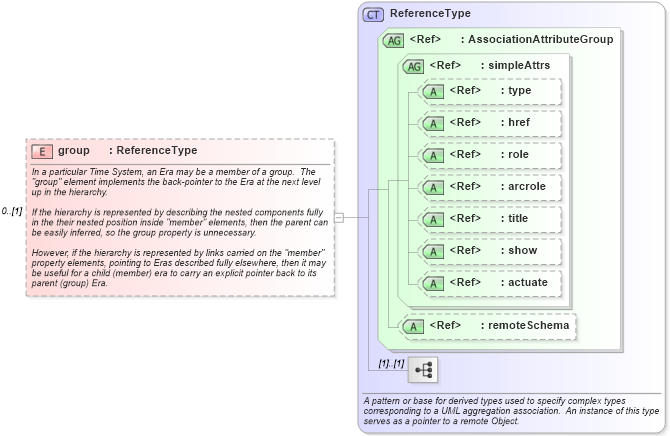

Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into ReferenceType in schema gmlbase_xsdXSD Diagram of group in schema temporalreferencesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="group" type="gml:ReferenceType" minOccurs="0">
    <annotation>
        <documentation>In a particular Time System, an Era may be a member of a group.  The "group" element implements the back-pointer to the Era at the next level up in the hierarchy.

If the hierarchy is represented by describing the nested components fully in the their nested position inside "member" elements, then the parent can be easily inferred, so the group property is unnecessary.

However, if the hierarchy is represented by links carried on the "member" property elements, pointing to Eras described fully elsewhere, then it may be useful for a child (member) era to carry an explicit pointer back to its parent (group) Era.</documentation>
    </annotation>
</element>
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
