Definition Type: AttributeGroup
Name: SRSInformationGroup
Namespace: http://www.opengis.net/gml
Containing Schema: geometryBasic0d1d.xsd
Documentation:
Optional additional and redundant information for a CRS to simplify use when a more complete definition of the CRS is not needed. This information shall be the same as included in the more complete definition of the CRS, referenced by the srsName attribute. When the srsName attribute is included, either both or neither of the axisLabels and uomLabels attributes shall be included. When the srsName attribute is omitted, both of these attributes shall be omitted.

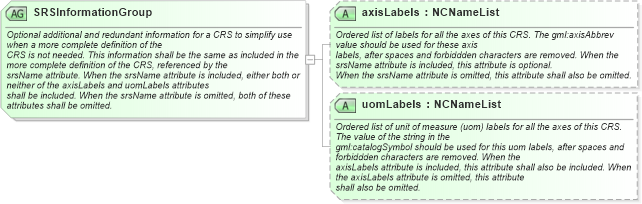

Collapse XSD Schema Diagram:
Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsdXSD Diagram of SRSInformationGroup in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<attributeGroup name="SRSInformationGroup">
    <annotation>
        <documentation>Optional additional and redundant information for a CRS to simplify use when a more complete definition of the
			CRS is not needed. This information shall be the same as included in the more complete definition of the CRS, referenced by the
			srsName attribute. When the srsName attribute is included, either both or neither of the axisLabels and uomLabels attributes
			shall be included. When the srsName attribute is omitted, both of these attributes shall be omitted.</documentation>
    </annotation>
    <attribute name="axisLabels" type="gml:NCNameList" use="optional">
        <annotation>
            <documentation>Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
				labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
				When the srsName attribute is omitted, this attribute shall also be omitted.</documentation>
        </annotation>
    </attribute>
    <attribute name="uomLabels" type="gml:NCNameList" use="optional">
        <annotation>
            <documentation>Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
				gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
				axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
				shall also be omitted.</documentation>
        </annotation>
    </attribute>
</attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
axisLabels gml:axisLabels Optional
uomLabels gml:uomLabels Optional
