Documentation for Geography Markup Language
Definition Type: ComplexType
Name: TimeNodeType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractTimeTopologyPrimitiveType
Containing Schema: temporalTopology.xsd
Abstract
Documentation:
Type declaration of the element "TimeNode".

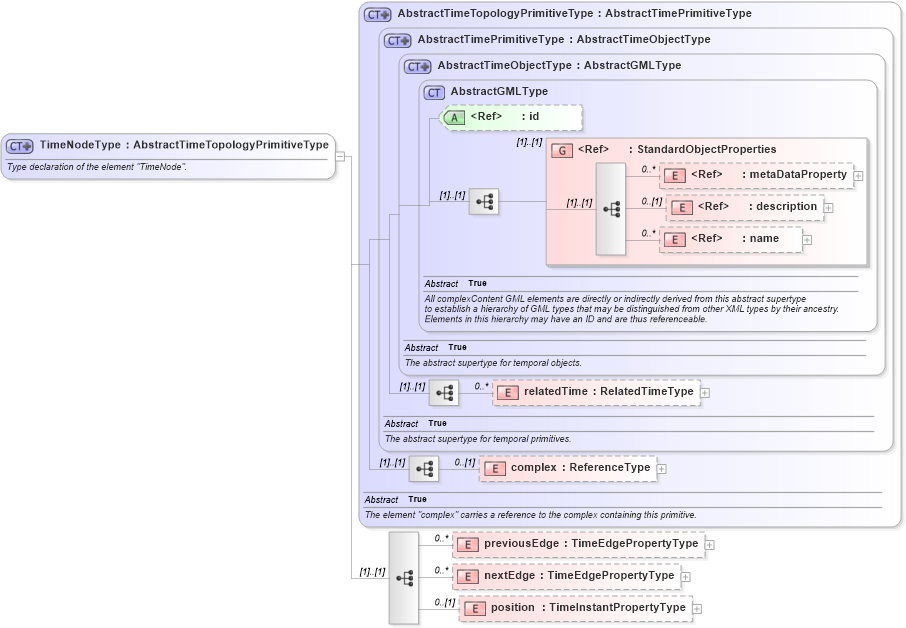

Collapse XSD Schema Diagram:
Drilldown into position in schema temporaltopology_xsd Drilldown into nextEdge in schema temporaltopology_xsd Drilldown into previousEdge in schema temporaltopology_xsd Drilldown into complex in schema temporaltopology_xsd Drilldown into relatedTime in schema temporal_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTimeObjectType in schema temporal_xsd Drilldown into AbstractTimePrimitiveType in schema temporal_xsd Drilldown into AbstractTimeTopologyPrimitiveType in schema temporaltopology_xsdXSD Diagram of TimeNodeType in schema temporaltopology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="TimeNodeType">
    <annotation>
        <documentation xml:lang="en">Type declaration of the element "TimeNode".</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractTimeTopologyPrimitiveType">
            <sequence>
                <element name="previousEdge" type="gml:TimeEdgePropertyType" minOccurs="0" maxOccurs="unbounded" />
                <element name="nextEdge" type="gml:TimeEdgePropertyType" minOccurs="0" maxOccurs="unbounded" />
                <element name="position" type="gml:TimeInstantPropertyType" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
relatedTime gml:relatedTime 0 unbounded
complex gml:complex 0 (1)
previousEdge gml:previousEdge 0 unbounded
nextEdge gml:nextEdge 0 unbounded
position gml:position 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:TimeNode
