Documentation for Geography Markup Language
Definition Type: ComplexType
Name: TimePositionType
Namespace: http://www.opengis.net/gml
Type: gml:TimePositionUnion
Containing Schema: temporal.xsd
Abstract
Documentation:
Direct representation of a temporal position. Indeterminate time values are also allowed, as described in ISO 19108. The indeterminatePosition attribute can be used alone or it can qualify a specific value for temporal position (e.g. before 2002-12, after 1019624400). For time values that identify position within a calendar, the calendarEraName attribute provides the name of the calendar era to which the date is referenced (e.g. the Meiji era of the Japanese calendar).

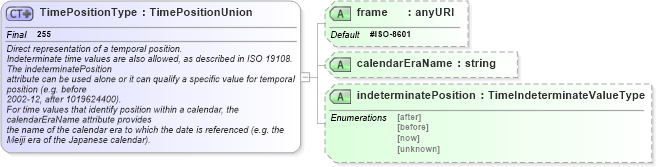

Collapse XSD Schema Diagram:
Drilldown into indeterminatePosition in schema temporal_xsd Drilldown into calendarEraName in schema temporal_xsd Drilldown into frame in schema temporal_xsdXSD Diagram of TimePositionType in schema temporal_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="TimePositionType" final="#all">
    <annotation>
        <documentation xml:lang="en">Direct representation of a temporal position.
      Indeterminate time values are also allowed, as described in ISO 19108. The indeterminatePosition
      attribute can be used alone or it can qualify a specific value for temporal position (e.g. before
      2002-12, after 1019624400).
      For time values that identify position within a calendar, the calendarEraName attribute provides
      the name of the calendar era to which the date is referenced (e.g. the Meiji era of the Japanese calendar).</documentation>
    </annotation>
    <simpleContent>
        <extension base="gml:TimePositionUnion">
            <attribute name="frame" type="anyURI" use="optional" default="#ISO-8601" />
            <attribute name="calendarEraName" type="string" use="optional" />
            <attribute name="indeterminatePosition" type="gml:TimeIndeterminateValueType" use="optional" />
        </extension>
    </simpleContent>
</complexType>
Collapse Child Attributes:
Name Type Default Value Use
frame gml:frame #ISO-8601 Optional
calendarEraName gml:calendarEraName Optional
indeterminatePosition gml:indeterminatePosition Optional
Collapse Derivation Tree:
Collapse References:
gml:beginPosition, gml:endPosition, gml:originPositiongml:timePosition,
