Documentation for Geography Markup Language
Definition Type: Group
Name: Value
Namespace: http://www.opengis.net/gml
Containing Schema: valueObjects.xsd
Documentation:
Utility choice group which unifies generic Values defined in this schema document with Geometry and Temporal objects and the Measures described above, so that any of these may be used within aggregate Values.

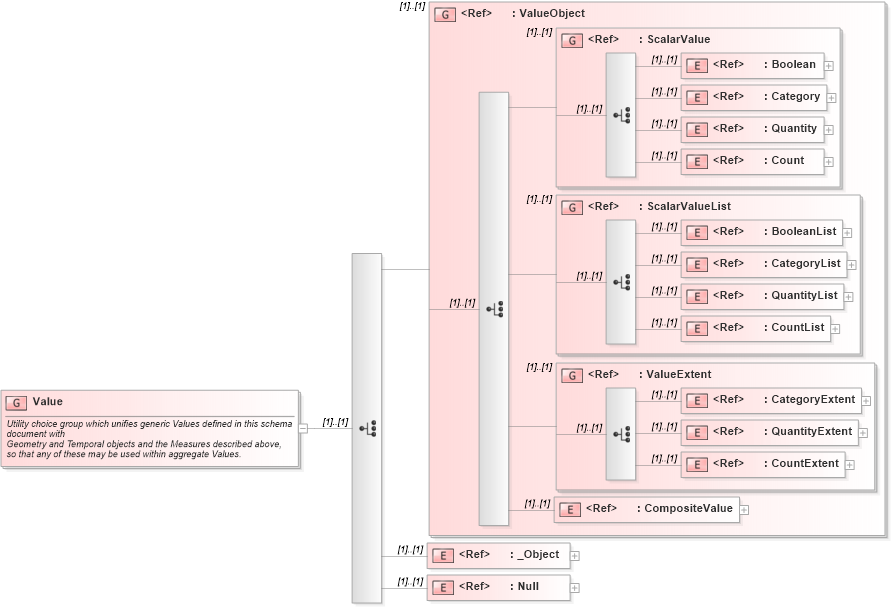

Collapse XSD Schema Diagram:
Drilldown into Null in schema basictypes_xsd Drilldown into _Object in schema gmlbase_xsd Drilldown into CompositeValue in schema valueobjects_xsd Drilldown into CountExtent in schema valueobjects_xsd Drilldown into QuantityExtent in schema valueobjects_xsd Drilldown into CategoryExtent in schema valueobjects_xsd Drilldown into ValueExtent in schema valueobjects_xsd Drilldown into CountList in schema valueobjects_xsd Drilldown into QuantityList in schema valueobjects_xsd Drilldown into CategoryList in schema valueobjects_xsd Drilldown into BooleanList in schema valueobjects_xsd Drilldown into ScalarValueList in schema valueobjects_xsd Drilldown into Count in schema valueobjects_xsd Drilldown into Quantity in schema valueobjects_xsd Drilldown into Category in schema valueobjects_xsd Drilldown into Boolean in schema valueobjects_xsd Drilldown into ScalarValue in schema valueobjects_xsd Drilldown into ValueObject in schema valueobjects_xsdXSD Diagram of Value in schema valueobjects_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<group name="Value">
    <annotation>
        <documentation>Utility choice group which unifies generic Values defined in this schema document with
			Geometry and Temporal objects and the Measures described above,
			so that any of these may be used within aggregate Values.</documentation>
    </annotation>
    <choice>
        <!-- <element ref="gml:_Value"/> -->
        <group ref="gml:ValueObject" />
        <element ref="gml:_Object" />
        <!--			<element ref="gml:_Geometry"/>
			<element ref="gml:_TimeObject"/> -->
        <element ref="gml:Null" />
    </choice>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Boolean gml:Boolean (1) (1)
Category gml:Category (1) (1)
Quantity gml:Quantity (1) (1)
Count gml:Count (1) (1)
BooleanList gml:BooleanList (1) (1)
CategoryList gml:CategoryList (1) (1)
QuantityList gml:QuantityList (1) (1)
CountList gml:CountList (1) (1)
CategoryExtent gml:CategoryExtent (1) (1)
QuantityExtent gml:QuantityExtent (1) (1)
CountExtent gml:CountExtent (1) (1)
CompositeValue gml:CompositeValue (1) (1)
_Object gml:_Object (1) (1)
Null gml:Null (1) (1)
<xs:group> gml:ValueObject (1) (1)
<xs:group> gml:ScalarValue (1) (1)
<xs:group> gml:ScalarValueList (1) (1)
<xs:group> gml:ValueExtent (1) (1)
