Documentation for Geography Markup Language
Definition Type: ComplexType
Name: VerticalCSType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCoordinateSystemType
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
A one-dimensional coordinate system used to record the heights (or depths) of points. Such a coordinate system is usually dependent on the Earth's gravity field, perhaps loosely as when atmospheric pressure is the basis for the vertical coordinate system axis. A VerticalCS shall have one usesAxis association.

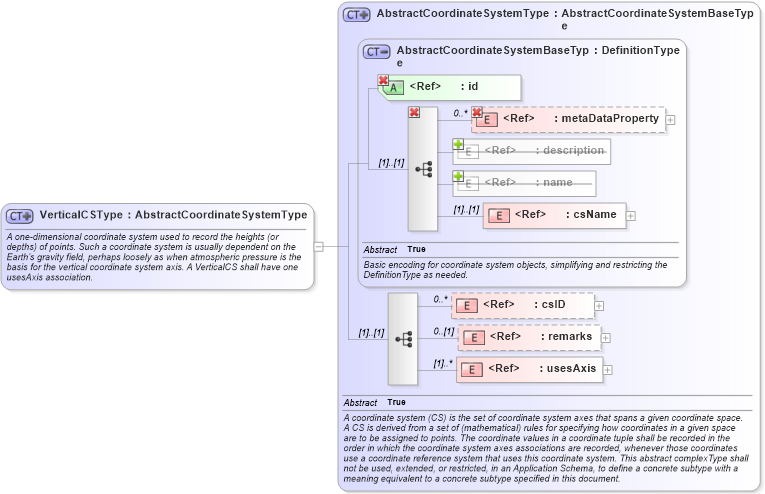

Collapse XSD Schema Diagram:
Drilldown into usesAxis in schema coordinatesystems_xsd Drilldown into remarks in schema referencesystems_xsd Drilldown into csID in schema coordinatesystems_xsd Drilldown into csName in schema coordinatesystems_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractCoordinateSystemBaseType in schema coordinatesystems_xsd Drilldown into AbstractCoordinateSystemType in schema coordinatesystems_xsdXSD Diagram of VerticalCSType in schema coordinatesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="VerticalCSType">
    <annotation>
        <documentation>A one-dimensional coordinate system used to record the heights (or depths) of points. Such a coordinate system is usually dependent on the Earth's gravity field, perhaps loosely as when atmospheric pressure is the basis for the vertical coordinate system axis. A VerticalCS shall have one usesAxis association. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCoordinateSystemType" />
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
csName gml:csName (1) (1)
csID gml:csID 0 unbounded
remarks gml:remarks 0 (1)
usesAxis gml:usesAxis (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:VerticalCS
