Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractEX_GeographicExtent_Type
Namespace: http://www.isotc211.org/2005/gmd
Type: gco:AbstractObject_Type
Containing Schema: extent.xsd
Abstract True
Documentation:
Geographic area of the dataset

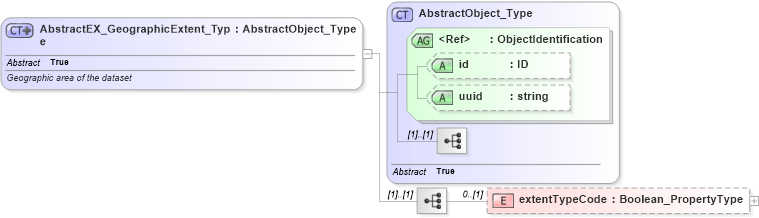

Collapse XSD Schema Diagram:
Drilldown into extentTypeCode in schema extent_xsd Drilldown into uuid in schema gcobase_xsd Drilldown into id in schema gcobase_xsd Drilldown into ObjectIdentification in schema gcobase_xsd Drilldown into AbstractObject_Type in schema gcobase_xsdXSD Diagram of AbstractEX_GeographicExtent_Type in schema extent_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<xs:complexType name="AbstractEX_GeographicExtent_Type" abstract="true">
    <xs:annotation>
        <xs:documentation>Geographic area of the dataset</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="gco:AbstractObject_Type">
            <xs:sequence>
                <xs:element name="extentTypeCode" type="gco:Boolean_PropertyType" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extentTypeCode gmd:extentTypeCode 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:AbstractEX_GeographicExtentgmd:EX_BoundingPolygon_Type, gmd:EX_GeographicBoundingBox_Type, gmd:EX_GeographicDescription_Type,
