Documentation for Geography Markup Language
Definition Type: Element
Name: AbstractTimeGeometricPrimitive
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractTimeGeometricPrimitiveType
Containing Schema: temporal.xsd
Abstract True
Documentation:
gml:TimeGeometricPrimitive acts as the head of a substitution group for geometric temporal primitives. A temporal geometry shall be associated with a temporal reference system through the frame attribute that provides a URI reference that identifies a description of the reference system. Following ISO 19108, the Gregorian calendar with UTC is the default reference system, but others may also be used. The GPS calendar is an alternative reference systems in common use. The two geometric primitives in the temporal dimension are the instant and the period. GML components are defined to support these as follows.

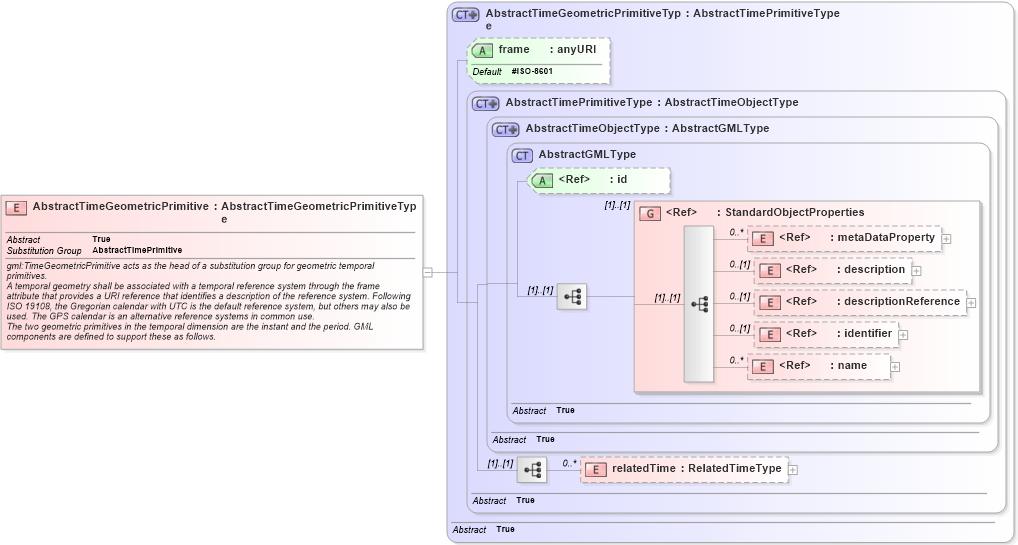

Collapse XSD Schema Diagram:
Drilldown into relatedTime in schema temporal_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTimeObjectType in schema temporal_xsd Drilldown into AbstractTimePrimitiveType in schema temporal_xsd Drilldown into frame in schema temporal_xsd Drilldown into AbstractTimeGeometricPrimitiveType in schema temporal_xsdXSD Diagram of AbstractTimeGeometricPrimitive in schema temporal_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="AbstractTimeGeometricPrimitive" type="gml:AbstractTimeGeometricPrimitiveType" abstract="true" substitutionGroup="gml:AbstractTimePrimitive">
    <annotation>
        <documentation>gml:TimeGeometricPrimitive acts as the head of a substitution group for geometric temporal primitives.
A temporal geometry shall be associated with a temporal reference system through the frame attribute that provides a URI reference that identifies a description of the reference system. Following ISO 19108, the Gregorian calendar with UTC is the default reference system, but others may also be used. The GPS calendar is an alternative reference systems in common use.
The two geometric primitives in the temporal dimension are the instant and the period. GML components are defined to support these as follows.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
relatedTime gml:relatedTime 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
frame gml:frame #ISO-8601 (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractTimePrimitive
