Documentation for Geography Markup Language
Definition Type: Element
Name: AbstractTimeSlice
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractTimeSliceType
Containing Schema: dynamicFeature.xsd
Abstract True
Documentation:
To describe an event — an action that occurs at an instant or over an interval of time — GML provides the gml:AbtractTimeSlice element. A timeslice encapsulates the time-varying properties of a dynamic feature -- it shall be extended to represent a time stamped projection of a specific feature. The gml:dataSource property describes how the temporal data was acquired. A gml:AbstractTimeSlice instance is a GML object that encapsulates updates of the dynamic—or volatile—properties that reflect some change event; it thus includes only those feature properties that have actually changed due to some process. gml:AbstractTimeSlice basically provides a facility for attribute-level time stamping, in contrast to the object-level time stamping of dynamic feature instances. The time slice can thus be viewed as event or process-oriented, whereas a snapshot is more state or structure-oriented. A timeslice has richer causality, whereas a snapshot merely portrays the status of the whole.

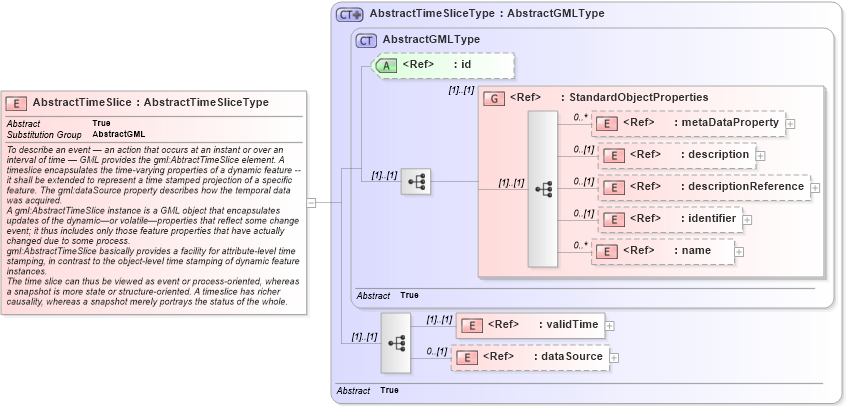

Collapse XSD Schema Diagram:
Drilldown into dataSource in schema dynamicfeature_xsd Drilldown into validTime in schema temporal_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTimeSliceType in schema dynamicfeature_xsdXSD Diagram of AbstractTimeSlice in schema dynamicfeature_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="AbstractTimeSlice" type="gml:AbstractTimeSliceType" abstract="true" substitutionGroup="gml:AbstractGML">
    <annotation>
        <documentation>To describe an event — an action that occurs at an instant or over an interval of time — GML provides the gml:AbtractTimeSlice element. A timeslice encapsulates the time-varying properties of a dynamic feature -- it shall be extended to represent a time stamped projection of a specific feature. The gml:dataSource property describes how the temporal data was acquired.
A gml:AbstractTimeSlice instance is a GML object that encapsulates updates of the dynamic—or volatile—properties that reflect some change event; it thus includes only those feature properties that have actually changed due to some process.
gml:AbstractTimeSlice basically provides a facility for attribute-level time stamping, in contrast to the object-level time stamping of dynamic feature instances.
The time slice can thus be viewed as event or process-oriented, whereas a snapshot is more state or structure-oriented. A timeslice has richer causality, whereas a snapshot merely portrays the status of the whole.
</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractGML
