Definition Type: Element
Name: AbstractTimeTopologyPrimitive
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractTimeTopologyPrimitiveType
Containing Schema: temporalTopology.xsd
Abstract True
Documentation:
gml:TimeTopologyPrimitive acts as the head of a substitution group for topological temporal primitives. Temporal topology primitives shall imply the ordering information between features or feature properties. The temporal connection of features can be examined if they have temporal topology primitives as values of their properties. Usually, an instantaneous feature associates with a time node, and a static feature associates with a time edge. A feature with both modes associates with the temporal topology primitive: a supertype of time nodes and time edges. A topological primitive is always connected to one or more other topological primitives, and is, therefore, always a member of a topological complex. In a GML instance, this will often be indicated by the primitives being described by elements that are descendents of an element describing a complex. However, in order to support the case where a temporal topological primitive is described in another context, the optional complex property is provided, which carries a reference to the parent temporal topological complex.

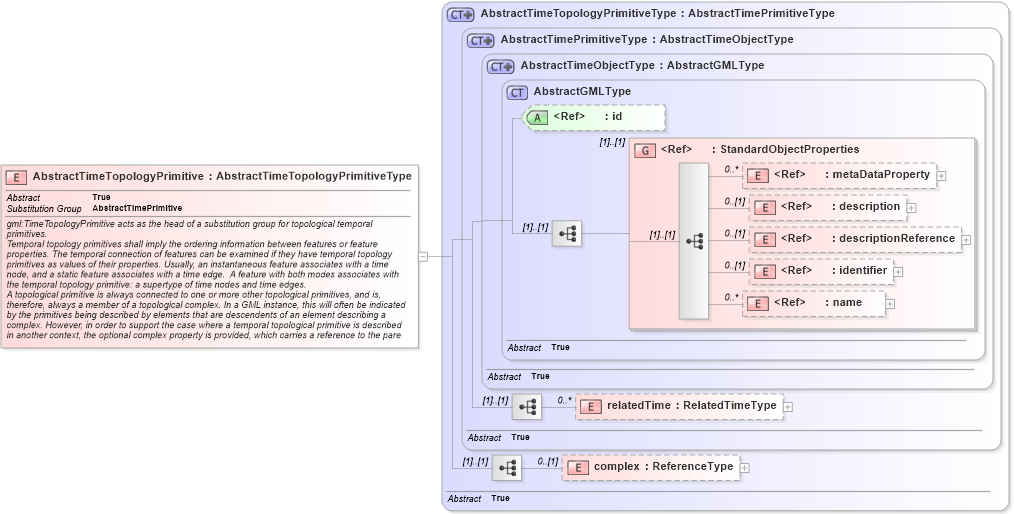

Collapse XSD Schema Diagram:
Drilldown into complex in schema temporaltopology_xsd Drilldown into relatedTime in schema temporal_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTimeObjectType in schema temporal_xsd Drilldown into AbstractTimePrimitiveType in schema temporal_xsd Drilldown into AbstractTimeTopologyPrimitiveType in schema temporaltopology_xsdXSD Diagram of AbstractTimeTopologyPrimitive in schema temporaltopology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="AbstractTimeTopologyPrimitive" type="gml:AbstractTimeTopologyPrimitiveType" abstract="true" substitutionGroup="gml:AbstractTimePrimitive">
    <annotation>
        <documentation>gml:TimeTopologyPrimitive acts as the head of a substitution group for topological temporal primitives.
Temporal topology primitives shall imply the ordering information between features or feature properties. The temporal connection of features can be examined if they have temporal topology primitives as values of their properties. Usually, an instantaneous feature associates with a time node, and a static feature associates with a time edge.  A feature with both modes associates with the temporal topology primitive: a supertype of time nodes and time edges.
A topological primitive is always connected to one or more other topological primitives, and is, therefore, always a member of a topological complex. In a GML instance, this will often be indicated by the primitives being described by elements that are descendents of an element describing a complex. However, in order to support the case where a temporal topological primitive is described in another context, the optional complex property is provided, which carries a reference to the parent temporal topological complex.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
relatedTime gml:relatedTime 0 unbounded
complex gml:complex 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractTimePrimitive
