Documentation for Geography Markup Language
Definition Type: Element
Name: AffineCS
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AffineCSType
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
gml:AffineCS is a two- or three-dimensional coordinate system with straight axes that are not necessarily orthogonal. An AffineCS shall have two or three gml:axis property elements; the number of property elements shall equal the dimension of the CS.

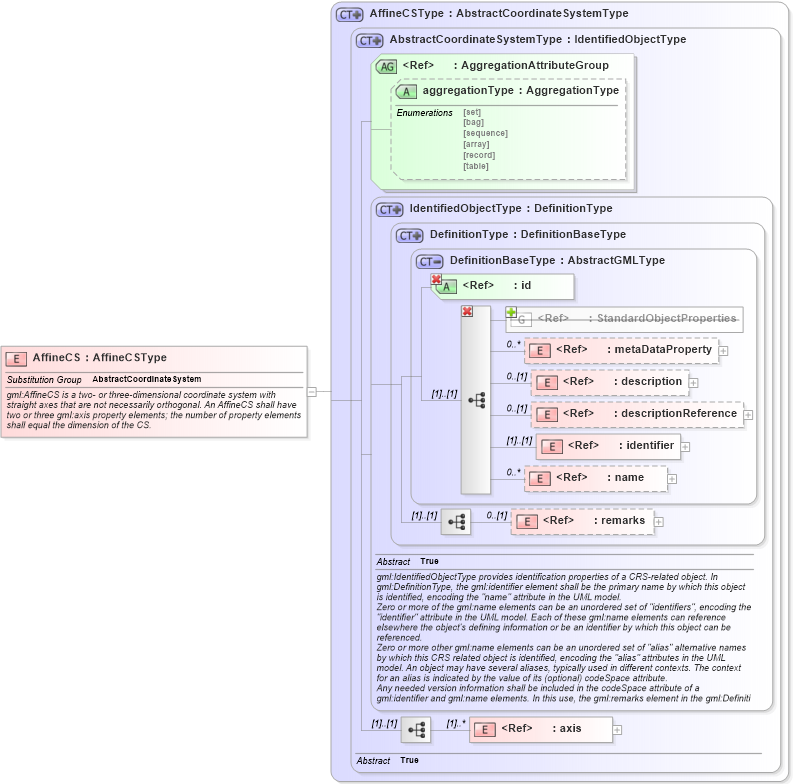

Collapse XSD Schema Diagram:
Drilldown into axis in schema coordinatesystems_xsd Drilldown into remarks in schema dictionary_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into DefinitionBaseType in schema dictionary_xsd Drilldown into DefinitionType in schema dictionary_xsd Drilldown into IdentifiedObjectType in schema referencesystems_xsd Drilldown into aggregationType in schema gmlbase_xsd Drilldown into AggregationAttributeGroup in schema gmlbase_xsd Drilldown into AbstractCoordinateSystemType in schema coordinatesystems_xsd Drilldown into AffineCSType in schema coordinatesystems_xsdXSD Diagram of AffineCS in schema coordinatesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="AffineCS" type="gml:AffineCSType" substitutionGroup="gml:AbstractCoordinateSystem">
    <annotation>
        <documentation>gml:AffineCS is a two- or three-dimensional coordinate system with straight axes that are not necessarily orthogonal. An AffineCS shall have two or three gml:axis property elements; the number of property elements shall equal the dimension of the CS.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
axis gml:axis (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCoordinateSystem
