Documentation for Geography Markup Language
Definition Type: Element
Name: Arc
Namespace: http://www.opengis.net/gml/3.2
Type: gml:ArcType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
An Arc is an arc string with only one arc unit, i.e. three control points including the start and end point. As arc is an arc string consisting of a single arc, the attribute "numArc" is fixed to "1".

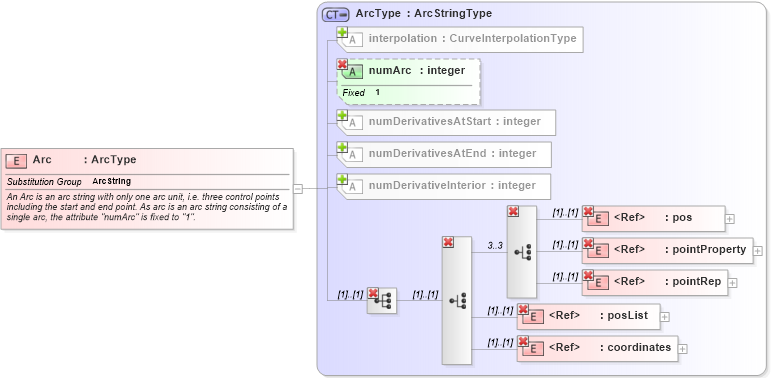

Collapse XSD Schema Diagram:
Drilldown into coordinates in schema deprecatedtypes_xsd Drilldown into posList in schema geometrybasic0d1d_xsd Drilldown into pointRep in schema deprecatedtypes_xsd Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into numDerivativeInterior in schema geometryprimitives_xsd Drilldown into numDerivativesAtEnd in schema geometryprimitives_xsd Drilldown into numDerivativesAtStart in schema geometryprimitives_xsd Drilldown into numArc in schema geometryprimitives_xsd Drilldown into interpolation in schema geometryprimitives_xsd Drilldown into ArcType in schema geometryprimitives_xsdXSD Diagram of Arc in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="Arc" type="gml:ArcType" substitutionGroup="gml:ArcString">
    <annotation>
        <documentation>An Arc is an arc string with only one arc unit, i.e. three control points including the start and end point. As arc is an arc string consisting of a single arc, the attribute "numArc" is fixed to "1".</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
numArc gml:numArc (Optional)
Collapse Derivation Tree:
Collapse References:
gml:ArcString
