Documentation for Geography Markup Language
Definition Type: ComplexType
Name: ArcByCenterPointType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractCurveSegmentType
Containing Schema: geometryPrimitives.xsd
Abstract

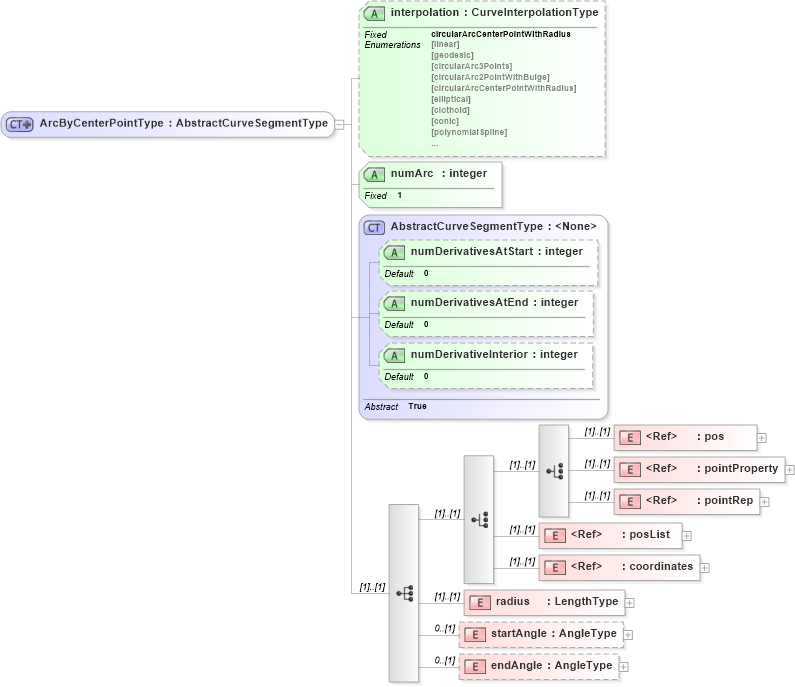

Collapse XSD Schema Diagram:
Drilldown into endAngle in schema geometryprimitives_xsd Drilldown into startAngle in schema geometryprimitives_xsd Drilldown into radius in schema geometryprimitives_xsd Drilldown into coordinates in schema deprecatedtypes_xsd Drilldown into posList in schema geometrybasic0d1d_xsd Drilldown into pointRep in schema deprecatedtypes_xsd Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into numDerivativeInterior in schema geometryprimitives_xsd Drilldown into numDerivativesAtEnd in schema geometryprimitives_xsd Drilldown into numDerivativesAtStart in schema geometryprimitives_xsd Drilldown into AbstractCurveSegmentType in schema geometryprimitives_xsd Drilldown into numArc in schema geometryprimitives_xsd Drilldown into interpolation in schema geometryprimitives_xsdXSD Diagram of ArcByCenterPointType in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="ArcByCenterPointType">
    <complexContent>
        <extension base="gml:AbstractCurveSegmentType">
            <sequence>
                <choice>
                    <choice>
                        <element ref="gml:pos" />
                        <element ref="gml:pointProperty" />
                        <element ref="gml:pointRep" />
                    </choice>
                    <element ref="gml:posList" />
                    <element ref="gml:coordinates" />
                </choice>
                <element name="radius" type="gml:LengthType" />
                <element name="startAngle" type="gml:AngleType" minOccurs="0" />
                <element name="endAngle" type="gml:AngleType" minOccurs="0" />
            </sequence>
            <attribute name="interpolation" type="gml:CurveInterpolationType" fixed="circularArcCenterPointWithRadius" />
            <attribute name="numArc" type="integer" use="required" fixed="1" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
radius gml:radius (1) (1)
startAngle gml:startAngle 0 (1)
endAngle gml:endAngle 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
numArc gml:numArc Required
Collapse Derivation Tree:
Collapse References:
gml:ArcByCenterPointgml:CircleByCenterPointType,
