Documentation for Geography Markup Language
Definition Type: Element
Name: baseCurve
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CurvePropertyType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
The property baseCurve references or contains the base curve, i.e. it either references the base curve via the XLink-attributes or contains the curve element. A curve element is any element which is substitutable for AbstractCurve. The base curve has positive orientation.

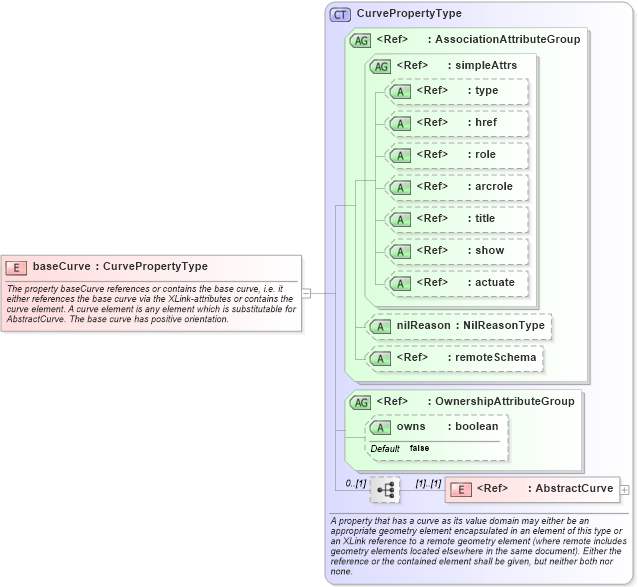

Collapse XSD Schema Diagram:
Drilldown into AbstractCurve in schema geometrybasic0d1d_xsd Drilldown into owns in schema gmlbase_xsd Drilldown into OwnershipAttributeGroup in schema gmlbase_xsd Drilldown into remoteSchema in schema deprecatedtypes_xsd Drilldown into nilReason in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into CurvePropertyType in schema geometrybasic0d1d_xsdXSD Diagram of baseCurve in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="baseCurve" type="gml:CurvePropertyType">
    <annotation>
        <documentation>The property baseCurve references or contains the base curve, i.e. it either references the base curve via the XLink-attributes or contains the curve element. A curve element is any element which is substitutable for AbstractCurve. The base curve has positive orientation.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractCurve gml:AbstractCurve (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
