Documentation for Geography Markup Language
Definition Type: Element
Name: coordinateOperationAccuracy
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:coordinateOperationAccuracy is an association role to a DQ_PositionalAccuracy object as encoded in ISO/TS 19139, either referencing or containing the definition of that positional accuracy. That object contains an estimate of the impact of this coordinate operation on point accuracy. That is, it gives position error estimates for the target coordinates of this coordinate operation, assuming no errors in the source coordinates.

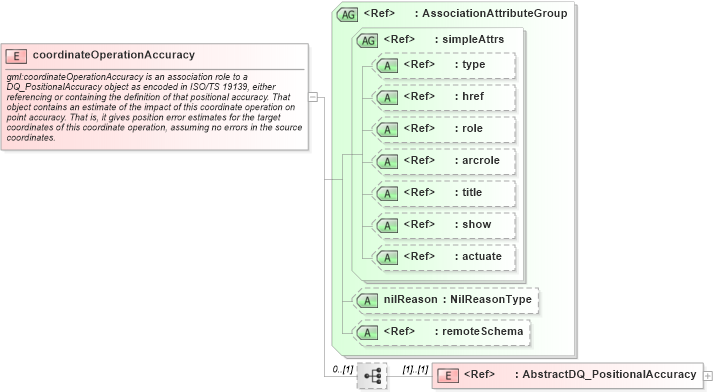

Collapse XSD Schema Diagram:
Drilldown into AbstractDQ_PositionalAccuracy in schema dataquality_xsd Drilldown into remoteSchema in schema deprecatedtypes_xsd Drilldown into nilReason in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of coordinateOperationAccuracy in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="coordinateOperationAccuracy">
    <annotation>
        <documentation>gml:coordinateOperationAccuracy is an association role to a DQ_PositionalAccuracy object as encoded in ISO/TS 19139, either referencing or containing the definition of that positional accuracy. That object contains an estimate of the impact of this coordinate operation on point accuracy. That is, it gives position error estimates for the target coordinates of this coordinate operation, assuming no errors in the source coordinates.</documentation>
    </annotation>
    <complexType>
        <sequence minOccurs="0">
            <element ref="gmd:AbstractDQ_PositionalAccuracy" />
        </sequence>
        <attributeGroup ref="gml:AssociationAttributeGroup" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractDQ_PositionalAccuracy gmd:AbstractDQ_PositionalAccuracy (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
