Documentation for Geography Markup Language
Definition Type: ComplexType
Name: CoordinatesType
Namespace: http://www.opengis.net/gml/3.2
Type: string:http://www.w3.org/2001/XMLSchema
Containing Schema: basicTypes.xsd
Abstract
Documentation:
This type is deprecated for tuples with ordinate values that are numbers. CoordinatesType is a text string, intended to be used to record an array of tuples or coordinates. While it is not possible to enforce the internal structure of the string through schema validation, some optional attributes have been provided in previous versions of GML to support a description of the internal structure. These attributes are deprecated. The attributes were intended to be used as follows: Decimal symbol used for a decimal point (default="." a stop or period) cs symbol used to separate components within a tuple or coordinate string (default="," a comma) ts symbol used to separate tuples or coordinate strings (default=" " a space) Since it is based on the XML Schema string type, CoordinatesType may be used in the construction of tables of tuples or arrays of tuples, including ones that contain mixed text and numeric values.

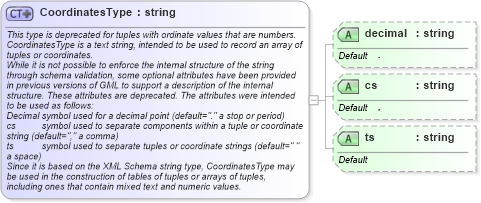

Collapse XSD Schema Diagram:
Drilldown into ts in schema basictypes_xsd Drilldown into cs in schema basictypes_xsd Drilldown into decimal in schema basictypes_xsdXSD Diagram of CoordinatesType in schema basictypes_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="CoordinatesType">
    <annotation>
        <documentation>This type is deprecated for tuples with ordinate values that are numbers.
CoordinatesType is a text string, intended to be used to record an array of tuples or coordinates.
While it is not possible to enforce the internal structure of the string through schema validation, some optional attributes have been provided in previous versions of GML to support a description of the internal structure. These attributes are deprecated. The attributes were intended to be used as follows:
Decimal	symbol used for a decimal point (default="." a stop or period)
cs        	symbol used to separate components within a tuple or coordinate string (default="," a comma)
ts        	symbol used to separate tuples or coordinate strings (default=" " a space)
Since it is based on the XML Schema string type, CoordinatesType may be used in the construction of tables of tuples or arrays of tuples, including ones that contain mixed text and numeric values.</documentation>
    </annotation>
    <simpleContent>
        <extension base="string">
            <attribute name="decimal" type="string" default="." />
            <attribute name="cs" type="string" default="," />
            <attribute name="ts" type="string" default=" " />
        </extension>
    </simpleContent>
</complexType>
Collapse Child Attributes:
Name Type Default Value Use
decimal gml:decimal . (Optional)
cs gml:cs , (Optional)
ts gml:ts (Optional)
Collapse Derivation Tree:
Collapse References:
gml:coordinatesgml:tupleList,
