Documentation for Geography Markup Language
Definition Type: Element
Name: curveProperty
Namespace: http://www.opengis.net/gml/3.2
Type: gml:CurvePropertyType
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
This property element either references a curve via the XLink-attributes or contains the curve element. curveProperty is the predefined property which may be used by GML Application Schemas whenever a GML feature has a property with a value that is substitutable for AbstractCurve.

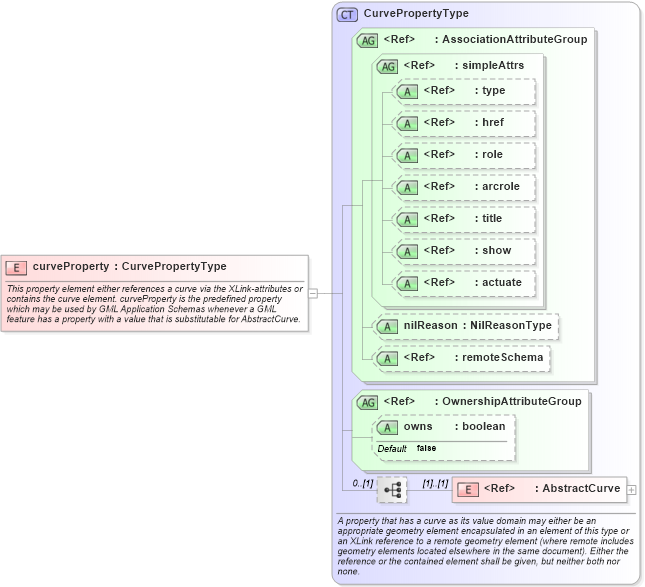

Collapse XSD Schema Diagram:
Drilldown into AbstractCurve in schema geometrybasic0d1d_xsd Drilldown into owns in schema gmlbase_xsd Drilldown into OwnershipAttributeGroup in schema gmlbase_xsd Drilldown into remoteSchema in schema deprecatedtypes_xsd Drilldown into nilReason in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsd Drilldown into CurvePropertyType in schema geometrybasic0d1d_xsdXSD Diagram of curveProperty in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="curveProperty" type="gml:CurvePropertyType">
    <annotation>
        <documentation>This property element either references a curve via the XLink-attributes or contains the curve element. curveProperty is the predefined property which may be used by GML Application Schemas whenever a GML feature has a property with a value that is substitutable for AbstractCurve.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractCurve gml:AbstractCurve (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
