Documentation for Geography Markup Language
Definition Type: Element
Name: DerivedUnit
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DerivedUnitType
Containing Schema: units.xsd
Abstract
Documentation:
Derived units are defined by combination of other units. Derived units are used for quantities other than those corresponding to the base units, such as hertz (s-1) for frequency, Newton (kg.m/s2) for force. Derived units based directly on base units are usually preferred for quantities other than the fundamental quantities within a system. If a derived unit is not the preferred unit, the gml:ConventionalUnit element should be used instead. The gml:DerivedUnit extends gml:UnitDefinition with the property gml:derivationUnitTerms.

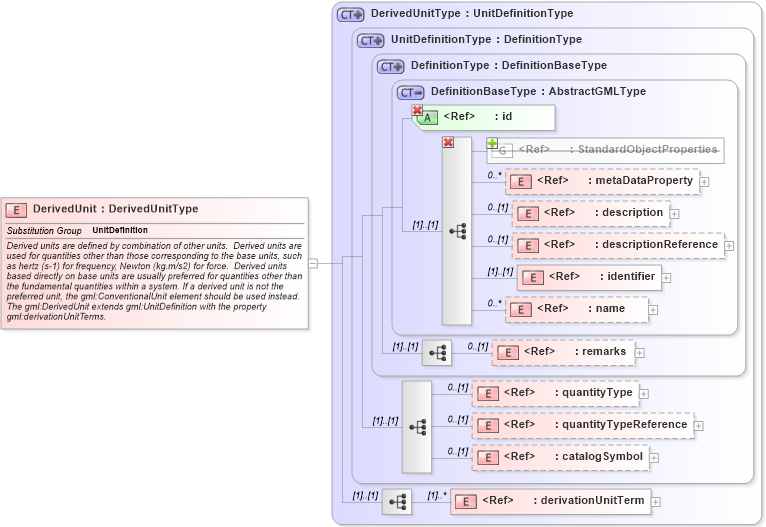

Collapse XSD Schema Diagram:
Drilldown into derivationUnitTerm in schema units_xsd Drilldown into catalogSymbol in schema units_xsd Drilldown into quantityTypeReference in schema units_xsd Drilldown into quantityType in schema units_xsd Drilldown into remarks in schema dictionary_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into DefinitionBaseType in schema dictionary_xsd Drilldown into DefinitionType in schema dictionary_xsd Drilldown into UnitDefinitionType in schema units_xsd Drilldown into DerivedUnitType in schema units_xsdXSD Diagram of DerivedUnit in schema units_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="DerivedUnit" type="gml:DerivedUnitType" substitutionGroup="gml:UnitDefinition">
    <annotation>
        <documentation>Derived units are defined by combination of other units.  Derived units are used for quantities other than those corresponding to the base units, such as hertz (s-1) for frequency, Newton (kg.m/s2) for force.  Derived units based directly on base units are usually preferred for quantities other than the fundamental quantities within a system. If a derived unit is not the preferred unit, the gml:ConventionalUnit element should be used instead.
The gml:DerivedUnit extends gml:UnitDefinition with the property gml:derivationUnitTerms.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
quantityType gml:quantityType 0 (1)
quantityTypeReference gml:quantityTypeReference 0 (1)
catalogSymbol gml:catalogSymbol 0 (1)
derivationUnitTerm gml:derivationUnitTerm (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:UnitDefinition
