Definition Type: Element
Name: Ellipsoid
Namespace: http://www.opengis.net/gml/3.2
Type: gml:EllipsoidType
Containing Schema: datums.xsd
Abstract
Documentation:
A gml:Ellipsoid is a geometric figure that may be used to describe the approximate shape of the earth. In mathematical terms, it is a surface formed by the rotation of an ellipse about its minor axis.

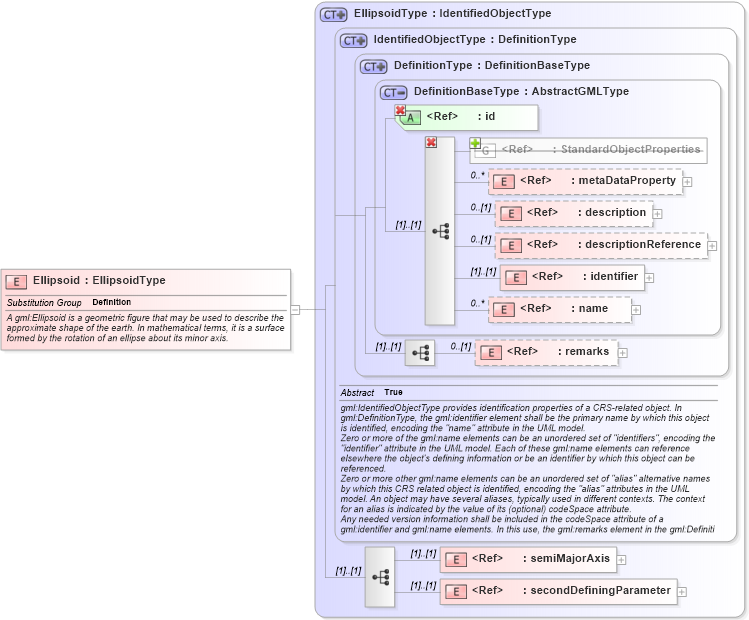

Collapse XSD Schema Diagram:
Drilldown into secondDefiningParameter in schema datums_xsd Drilldown into semiMajorAxis in schema datums_xsd Drilldown into remarks in schema dictionary_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into DefinitionBaseType in schema dictionary_xsd Drilldown into DefinitionType in schema dictionary_xsd Drilldown into IdentifiedObjectType in schema referencesystems_xsd Drilldown into EllipsoidType in schema datums_xsdXSD Diagram of Ellipsoid in schema datums_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="Ellipsoid" type="gml:EllipsoidType" substitutionGroup="gml:Definition">
    <annotation>
        <documentation>A gml:Ellipsoid is a geometric figure that may be used to describe the approximate shape of the earth. In mathematical terms, it is a surface formed by the rotation of an ellipse about its minor axis.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
semiMajorAxis gml:semiMajorAxis (1) (1)
secondDefiningParameter gml:secondDefiningParameter (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:Definition
