Documentation for Geography Markup Language
Definition Type: Group
Name: geometricPositionListGroup
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: geometryBasic0d1d.xsd
Documentation:
GML supports two different ways to specify a list of geometric positions: either by a sequence of geometric positions (by reusing the group definition) or a sequence of direct positions (element posList). The posList element allows for a compact way to specify the coordinates of the positions, if all positions are represented in the same coordinate reference system.

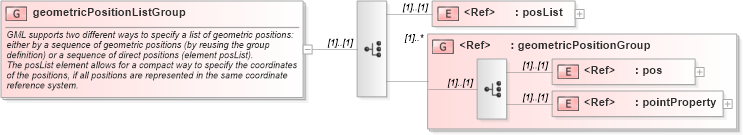

Collapse XSD Schema Diagram:
Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into geometricPositionGroup in schema geometrybasic0d1d_xsd Drilldown into posList in schema geometrybasic0d1d_xsdXSD Diagram of geometricPositionListGroup in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<group name="geometricPositionListGroup">
    <annotation>
        <documentation>GML supports two different ways to specify a list of geometric positions: either by a sequence of geometric positions (by reusing the group definition) or a sequence of direct positions (element posList).
The posList element allows for a compact way to specify the coordinates of the positions, if all positions are represented in the same coordinate reference system.</documentation>
    </annotation>
    <choice>
        <element ref="gml:posList" />
        <group ref="gml:geometricPositionGroup" maxOccurs="unbounded" />
    </choice>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
posList gml:posList (1) (1)
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
<xs:group> gml:geometricPositionGroup (1) unbounded
